Pinpoint Test D: The Speedometer/Odometer Is Inoperative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

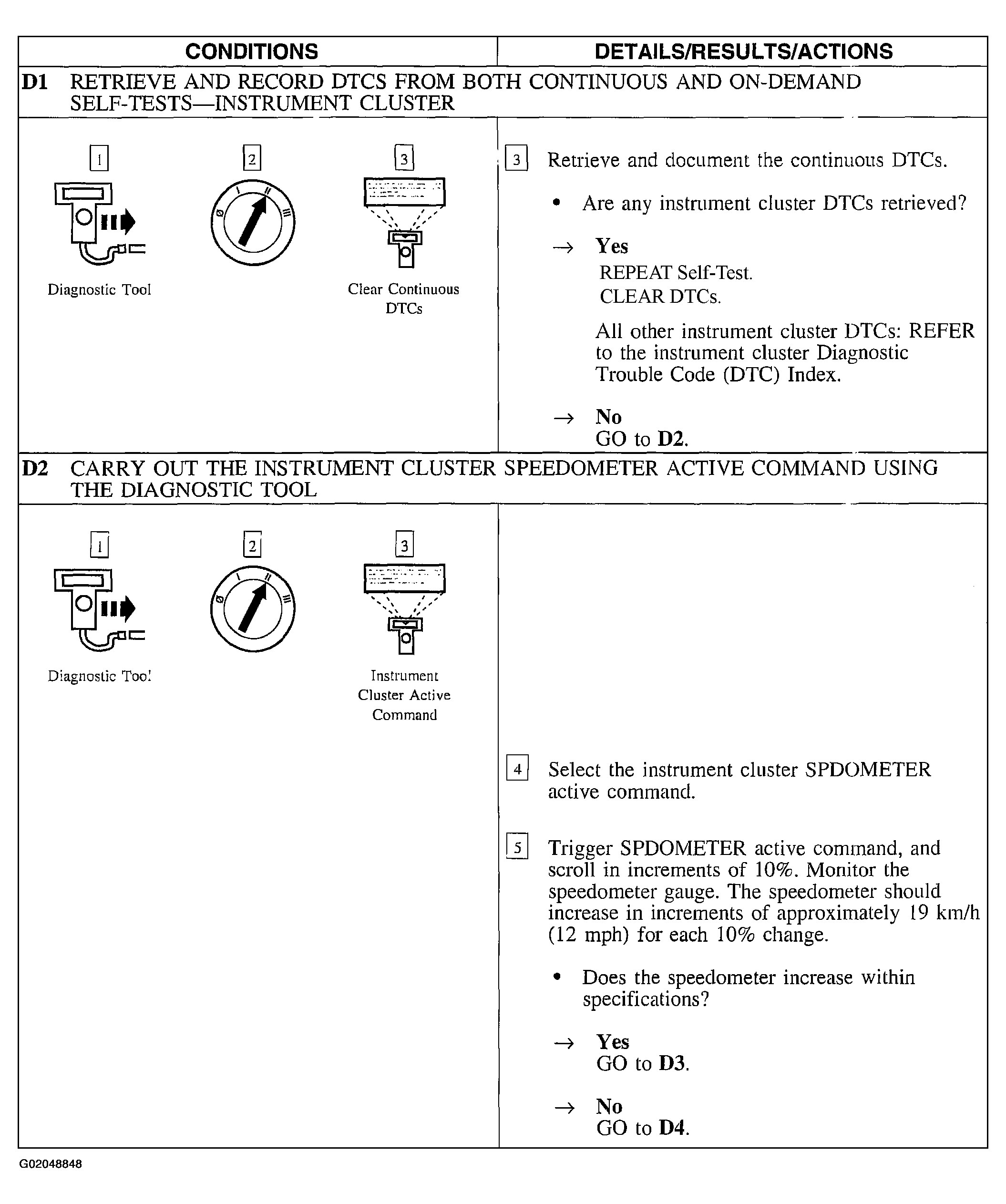

Fig 1: Pinpoint Test D: The Speedometer/Odometer Is Inoperative (Steps D1 & D2)
G02048848Courtesy of FORD MOTOR CO.

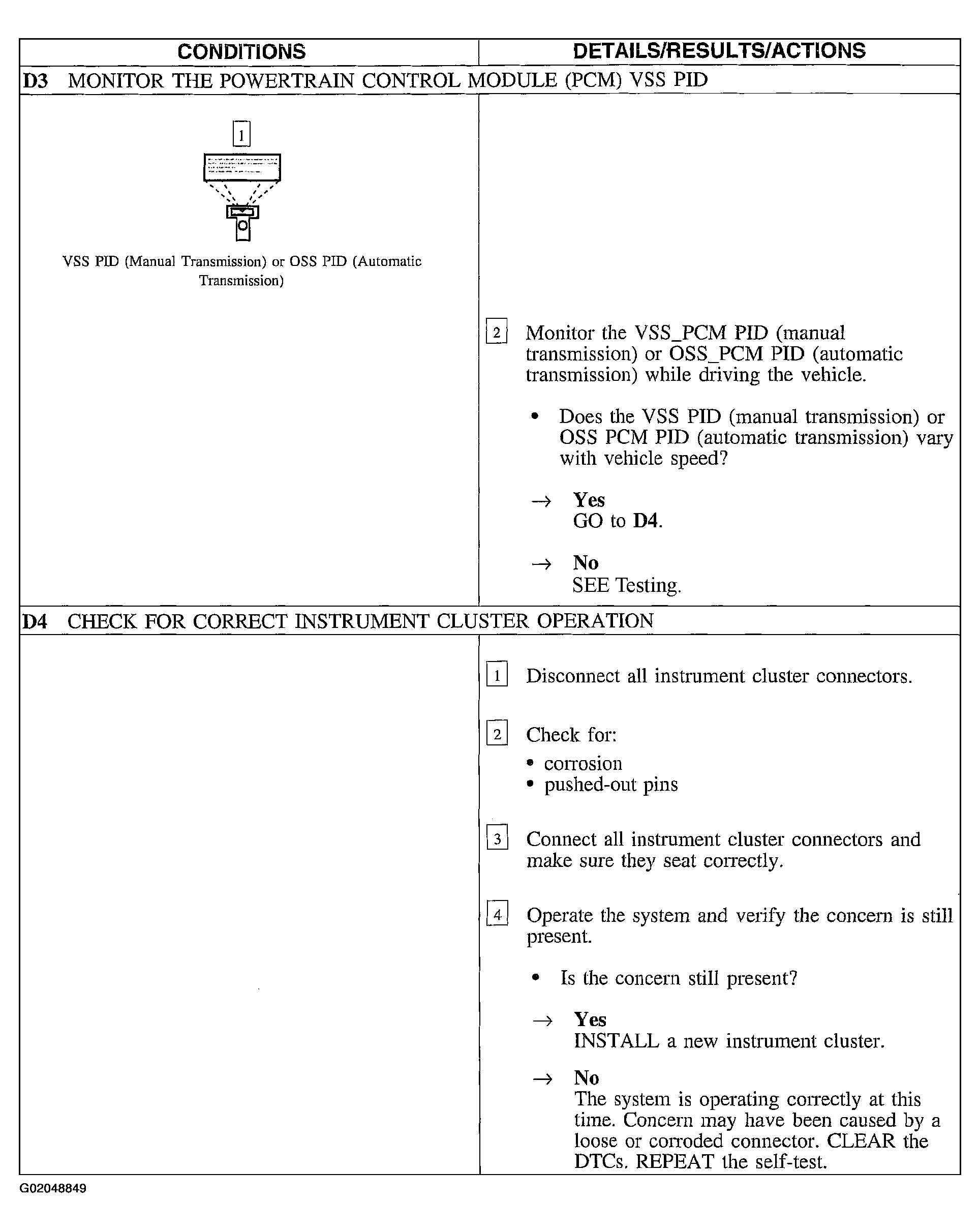

Fig 2: Pinpoint Test D: The Speedometer/Odometer Is Inoperative (Steps D3 & D4)
G02048849Courtesy of FORD MOTOR CO.
