Pinpoint Test B: The Instrument Cluster Is Inoperative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

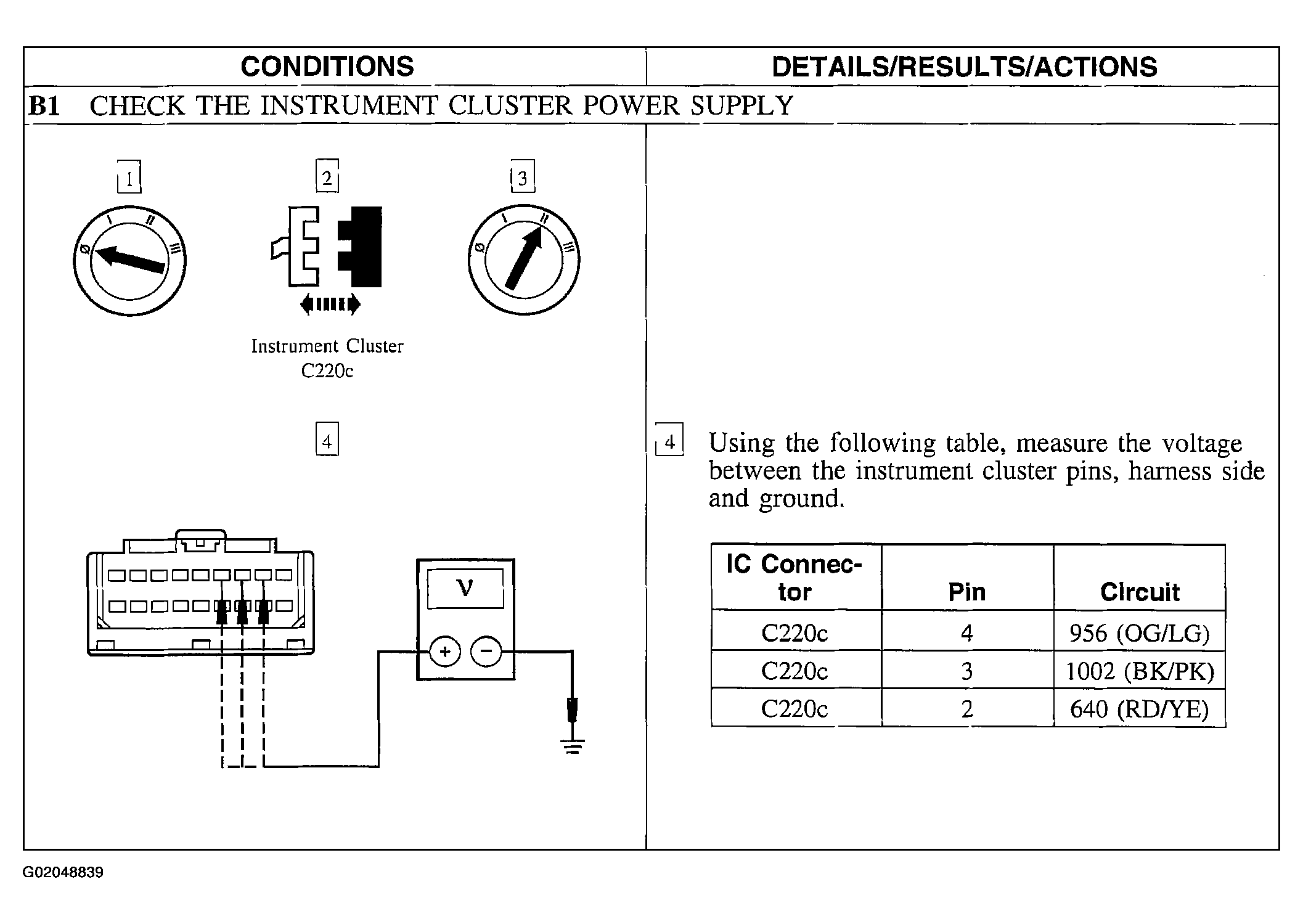

Fig 1: Pinpoint Test B: The Instrument Cluster Is Inoperative (Step B1)

Courtesy of FORD MOTOR CO.

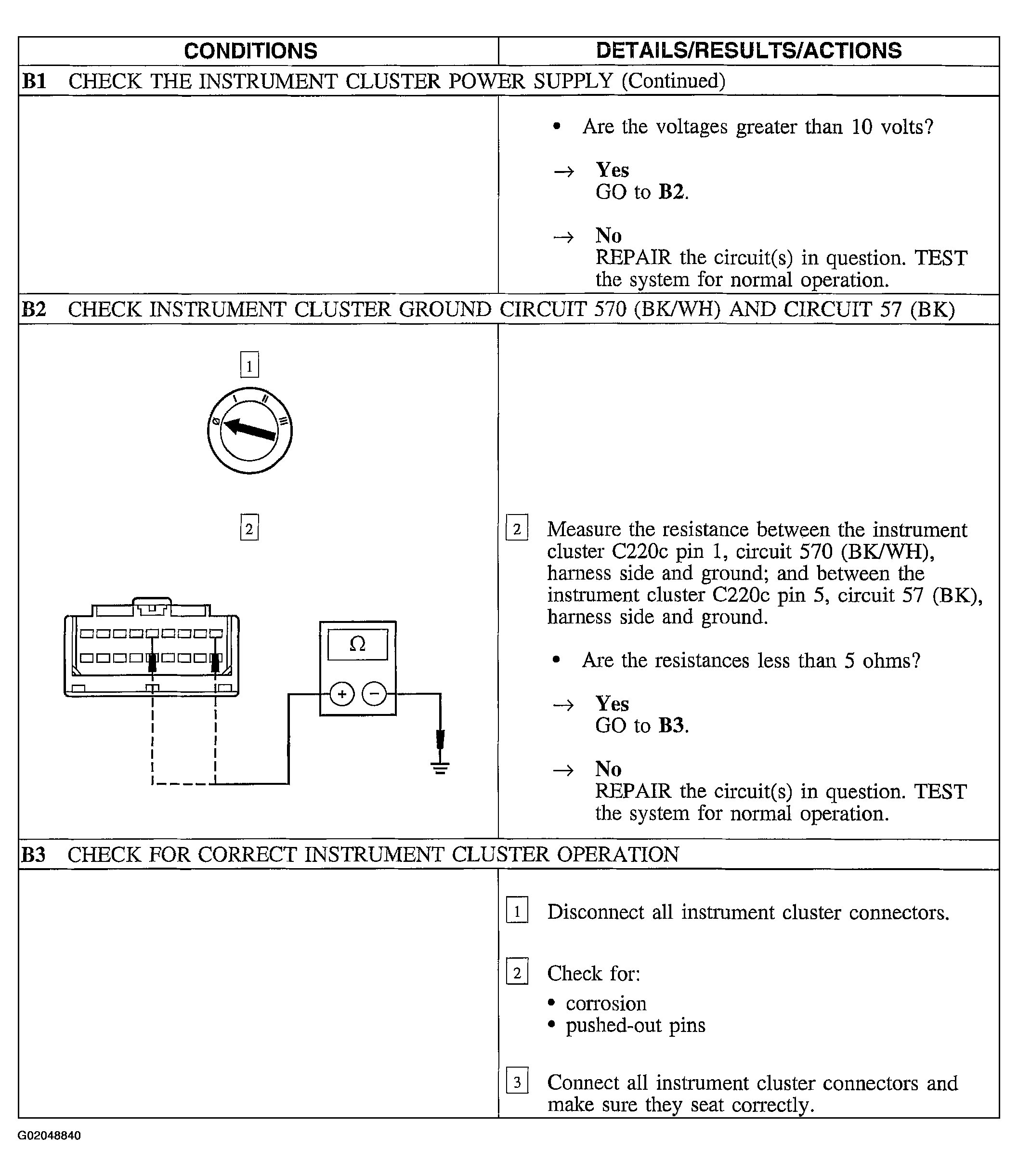

Fig 2: Pinpoint Test B: The Instrument Cluster Is Inoperative (Step B1 Cont. - B3)

Courtesy of FORD MOTOR CO.

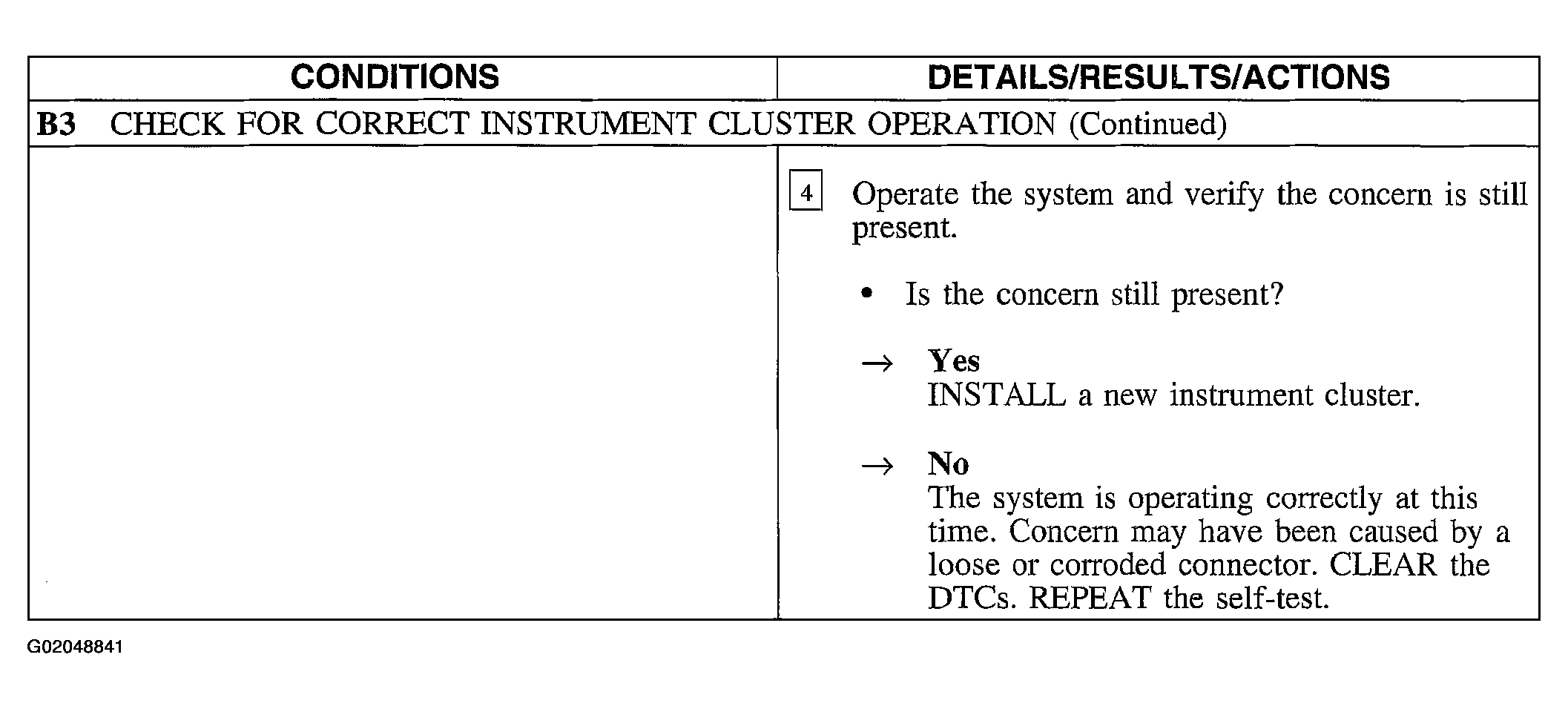

Fig 3: Pinpoint Test B: The Instrument Cluster Is Inoperative (Step B3 Cont.)

Courtesy of FORD MOTOR CO.
