Pinpoint Test A: No Communication With The Instrument Cluster Off

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

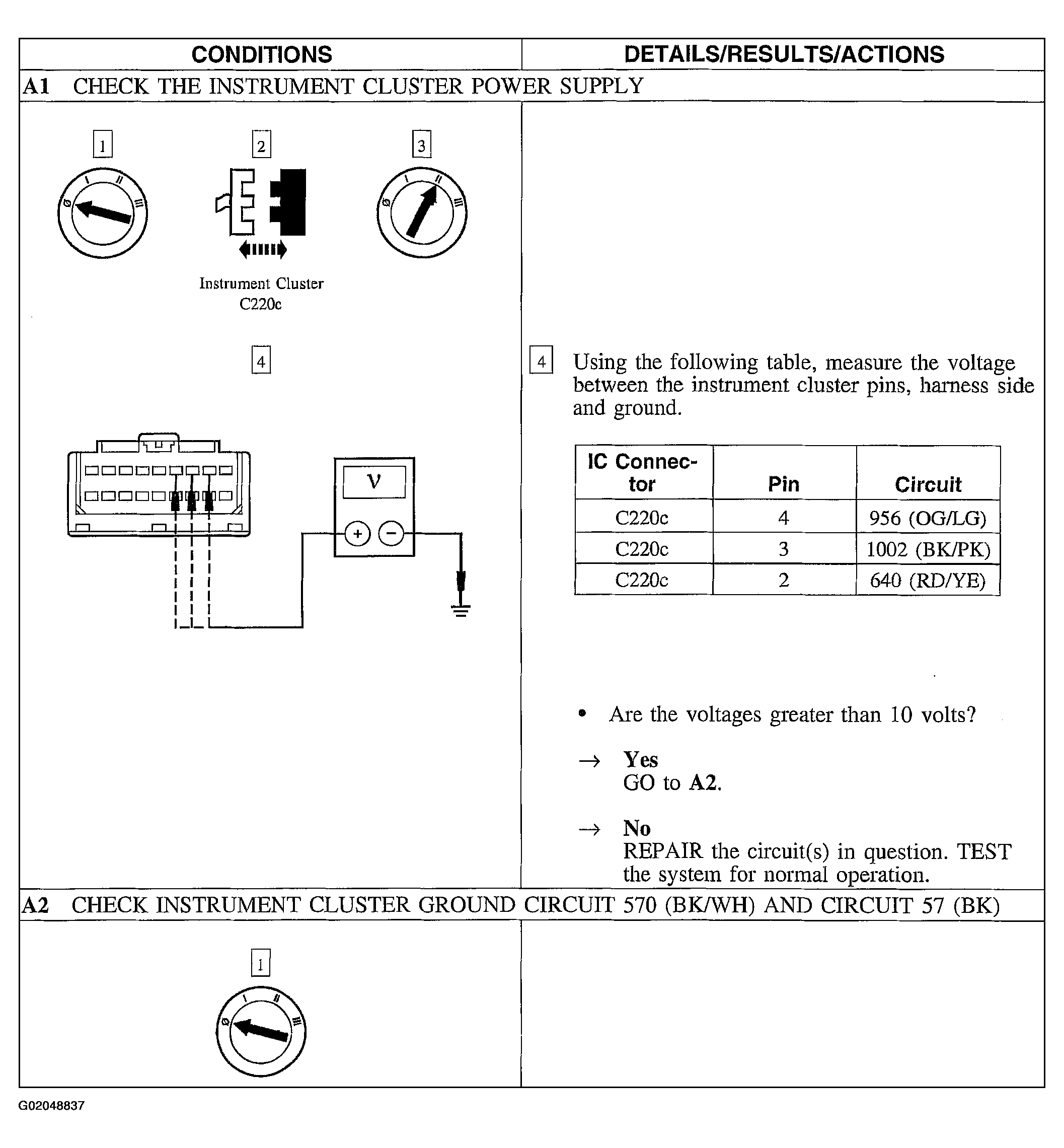

Fig 1: Pinpoint Test A: No Communication With The Instrument Cluster Off (Steps A1 & A2)
G02048837Courtesy of FORD MOTOR CO.

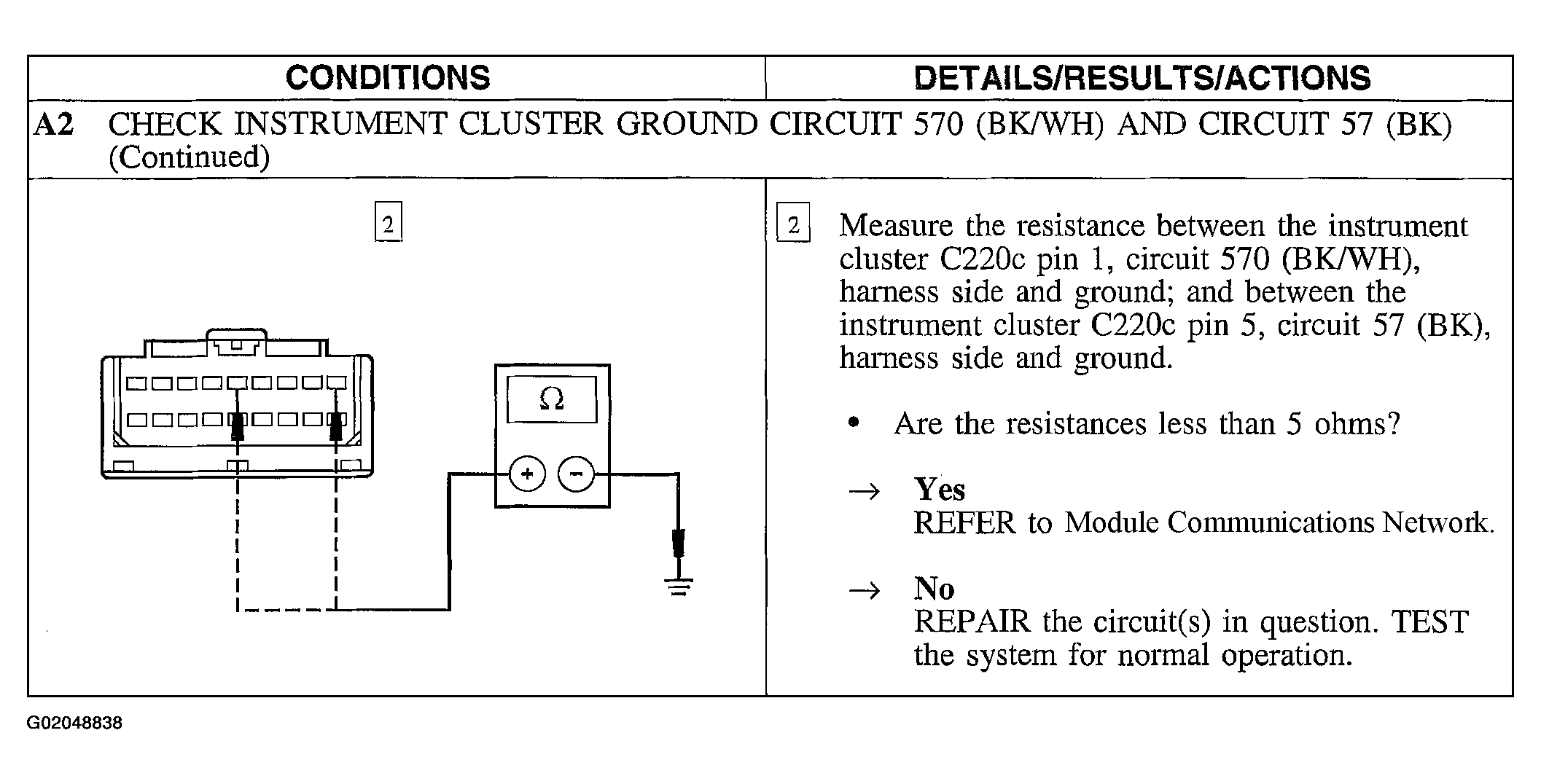

Fig 2: Pinpoint Test A: No Communication With The Instrument Cluster Off (Step A2 Cont.)
G02048838Courtesy of FORD MOTOR CO.
