Pinpoint Test G: The Front Fog Lamp Switch Illumination Is Inoperative (If Equipped)

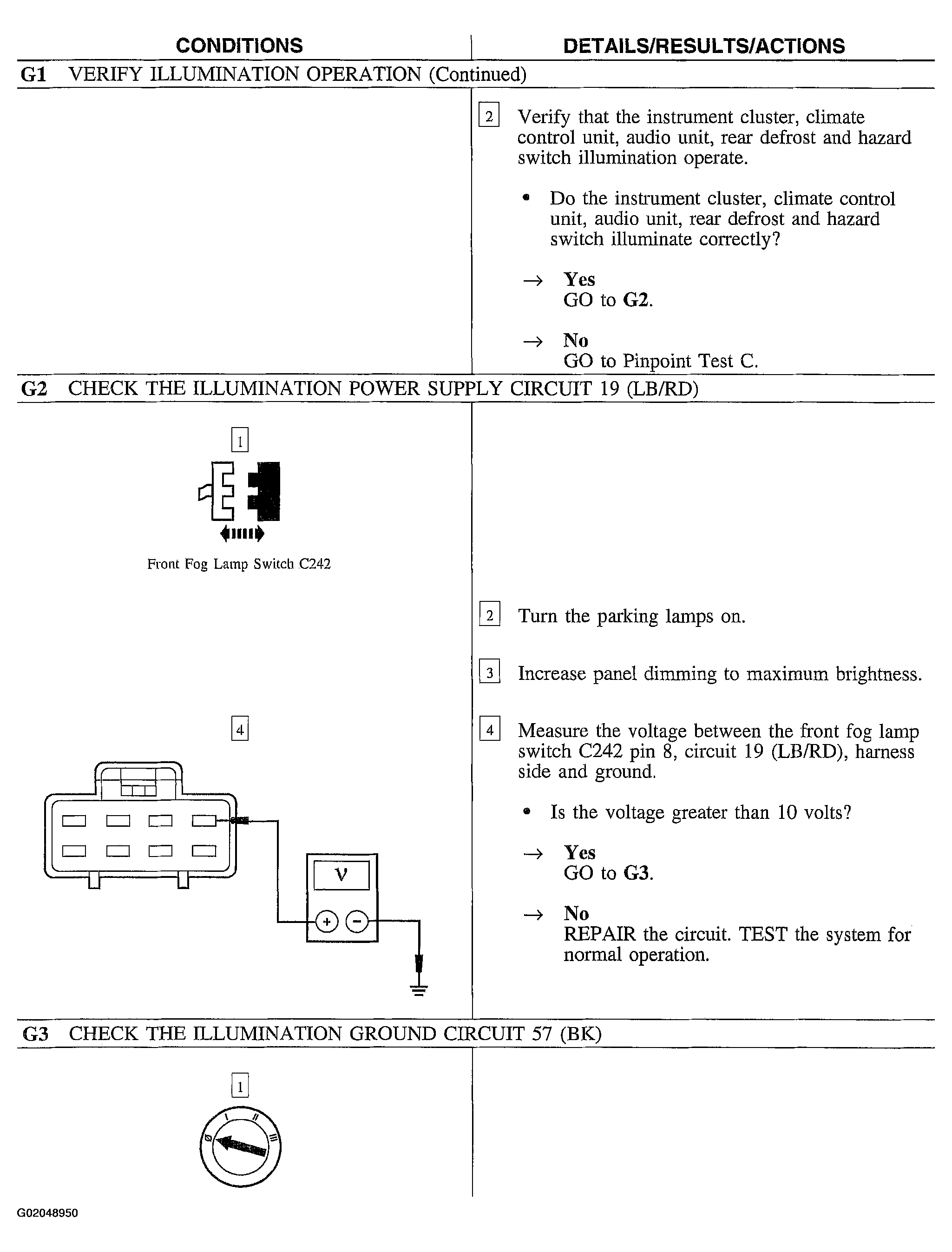

Fig 1: Pinpoint Test G: The Front Fog Lamp Switch Illumination Is Inoperative (If Equipped) (Step G1)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test G: The Front Fog Lamp Switch Illumination Is Inoperative (If Equipped) (Steps G1 Cont. - G3)

Courtesy of FORD MOTOR CO.

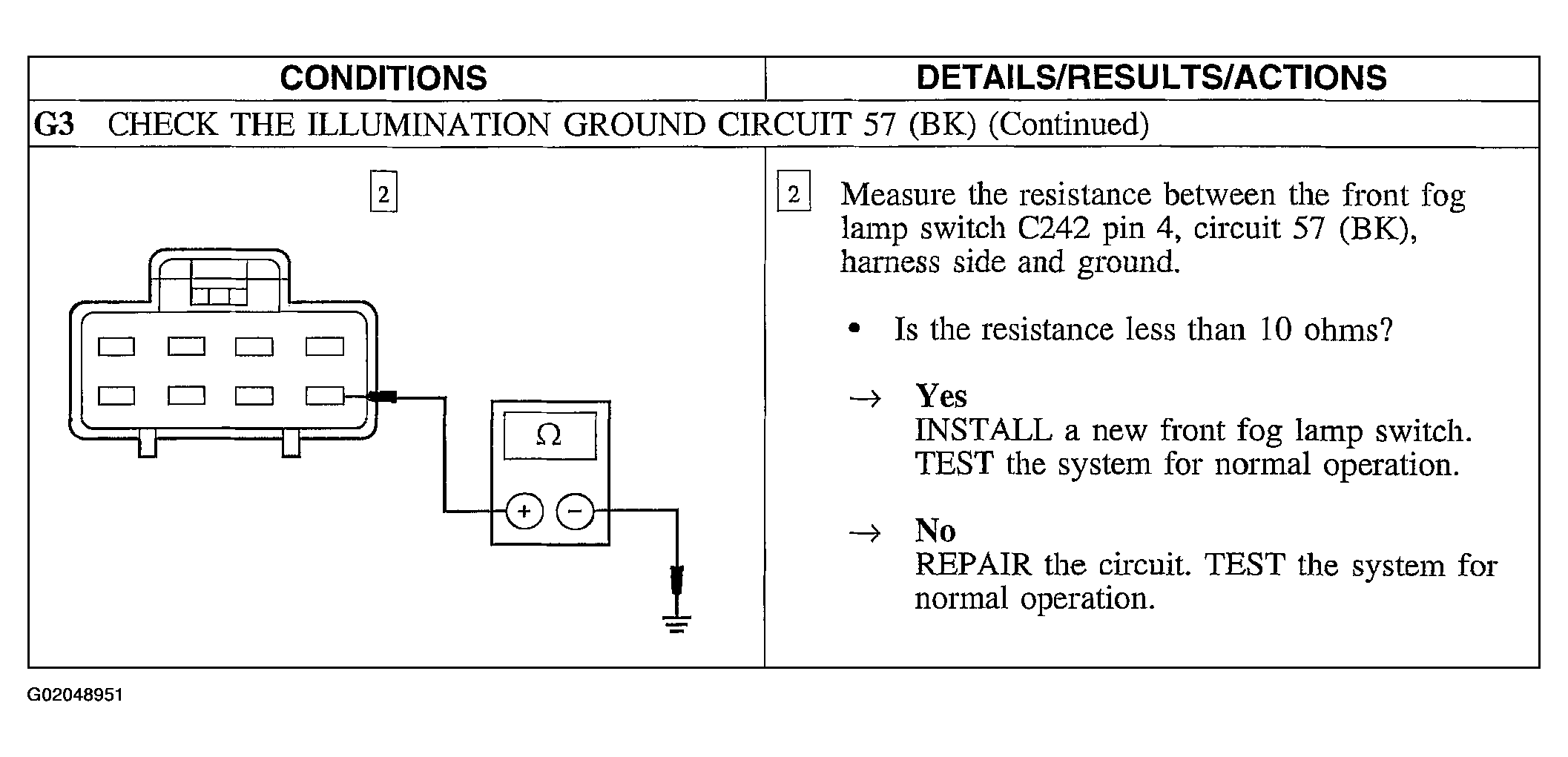

Fig 3: Pinpoint Test G: The Front Fog Lamp Switch Illumination Is Inoperative (If Equipped) (Steps G3)

Courtesy of FORD MOTOR CO.
