Pinpoint Test F: The Hazard Switch Illumination Is Inoperative

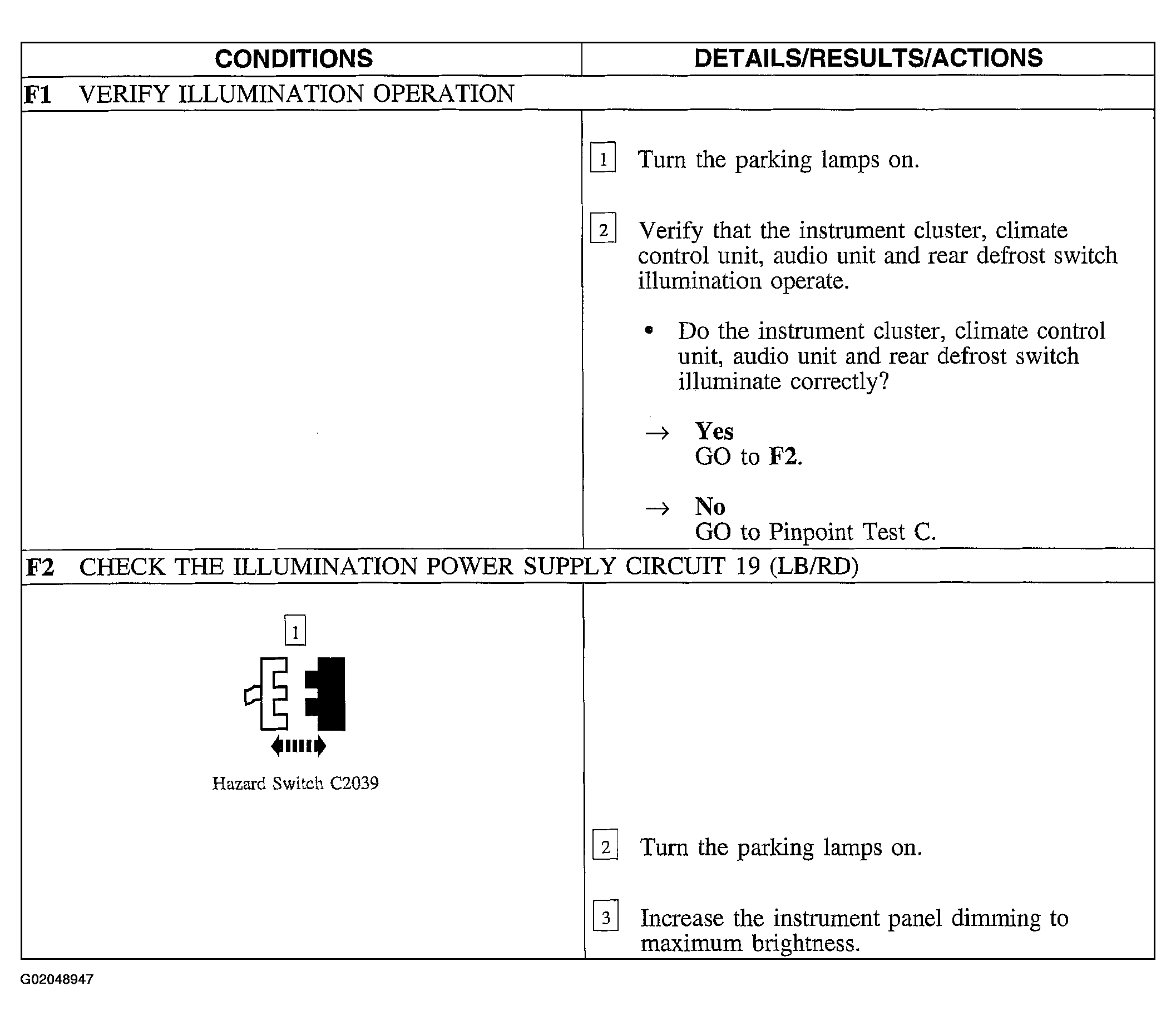

Fig 1: Pinpoint Test F: The Hazard Switch Illumination Is Inoperative (Steps F1 & F2)
G02048947Courtesy of FORD MOTOR CO.

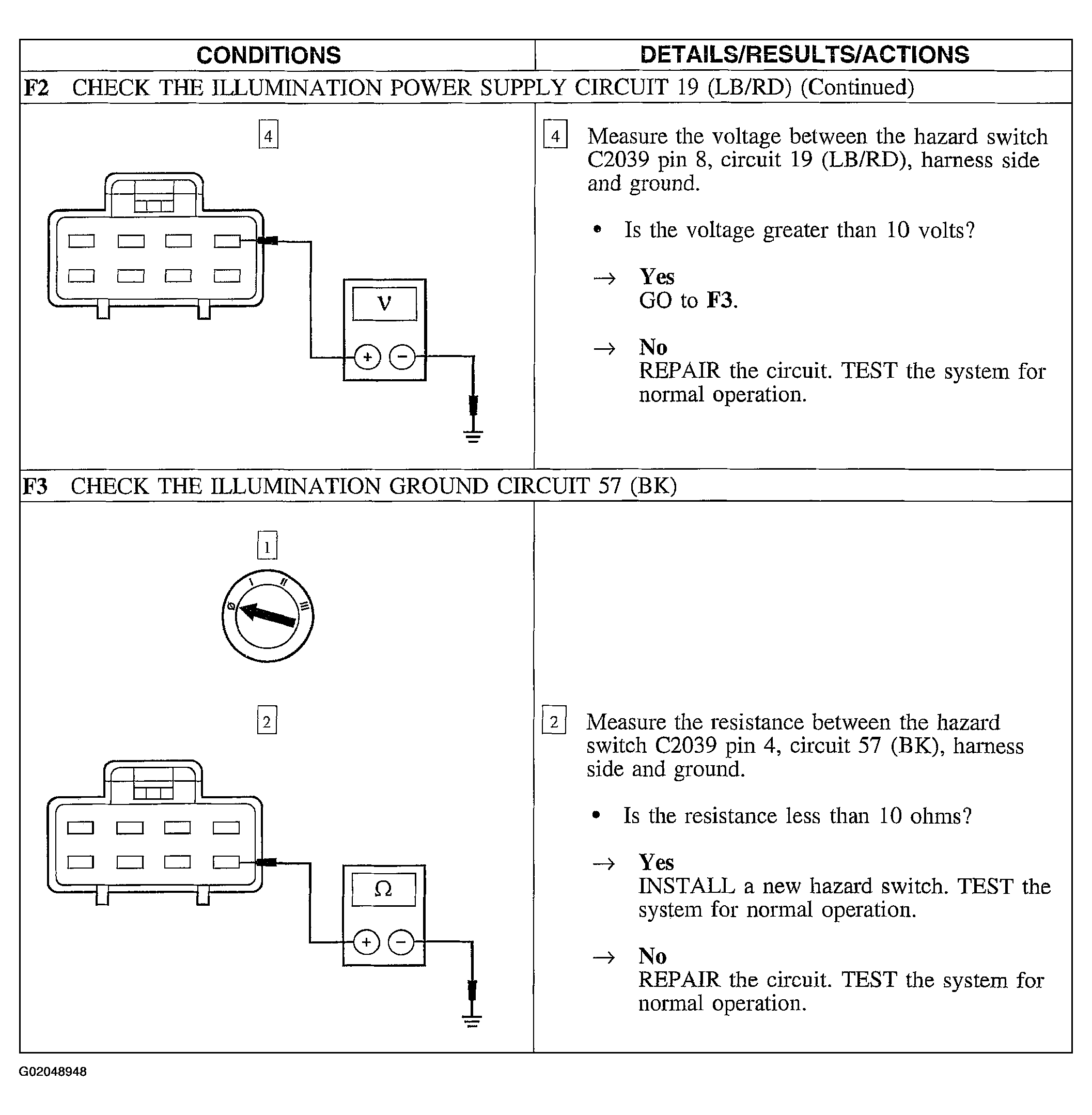

Fig 2: Pinpoint Test F: The Hazard Switch Illumination Is Inoperative (Steps F2 Cont. & F3)
G02048948Courtesy of FORD MOTOR CO.
