Pinpoint Test D: The Rear Defrost Switch Illumination Is Inoperative

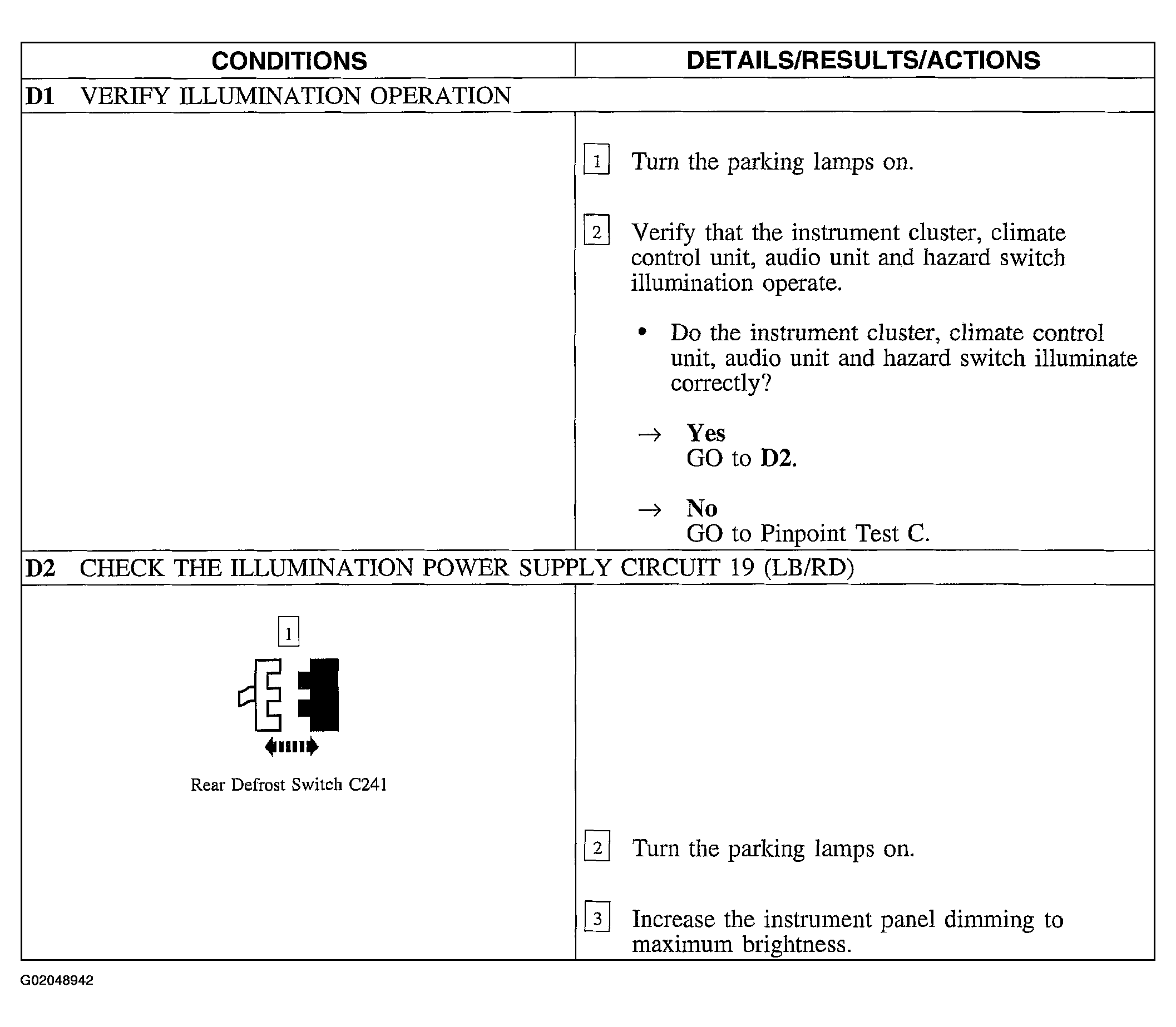

Fig 1: Pinpoint Test D: The Rear Defrost Switch Illumination Is Inoperative (Steps D1 & D2)
G02048942Courtesy of FORD MOTOR CO.

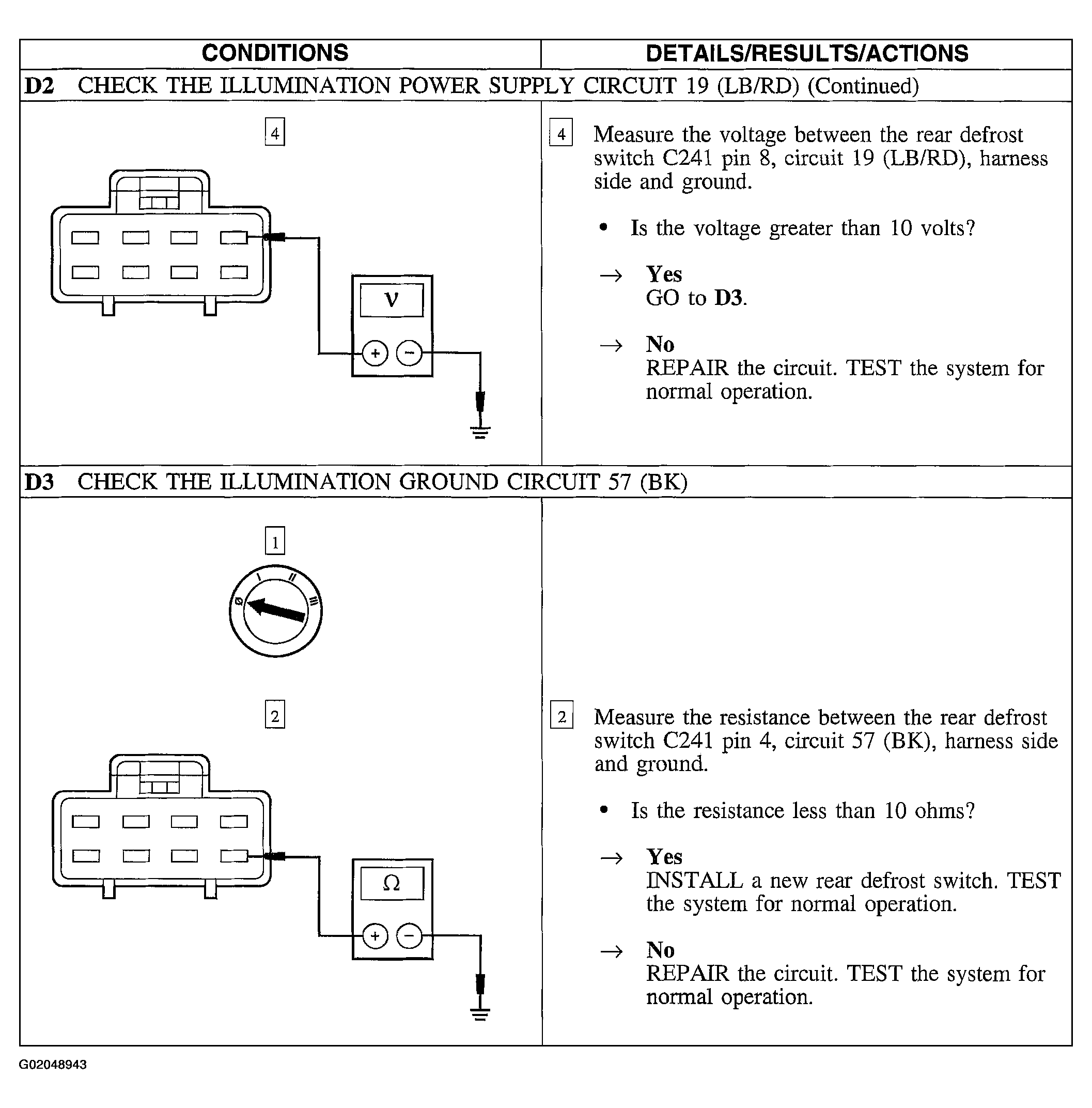

Fig 2: Pinpoint Test D: The Rear Defrost Switch Illumination Is Inoperative (Steps D2 Cont. & D3)
G02048943Courtesy of FORD MOTOR CO.
