Pinpoint Test B: The Audio System Illumination Is Inoperative

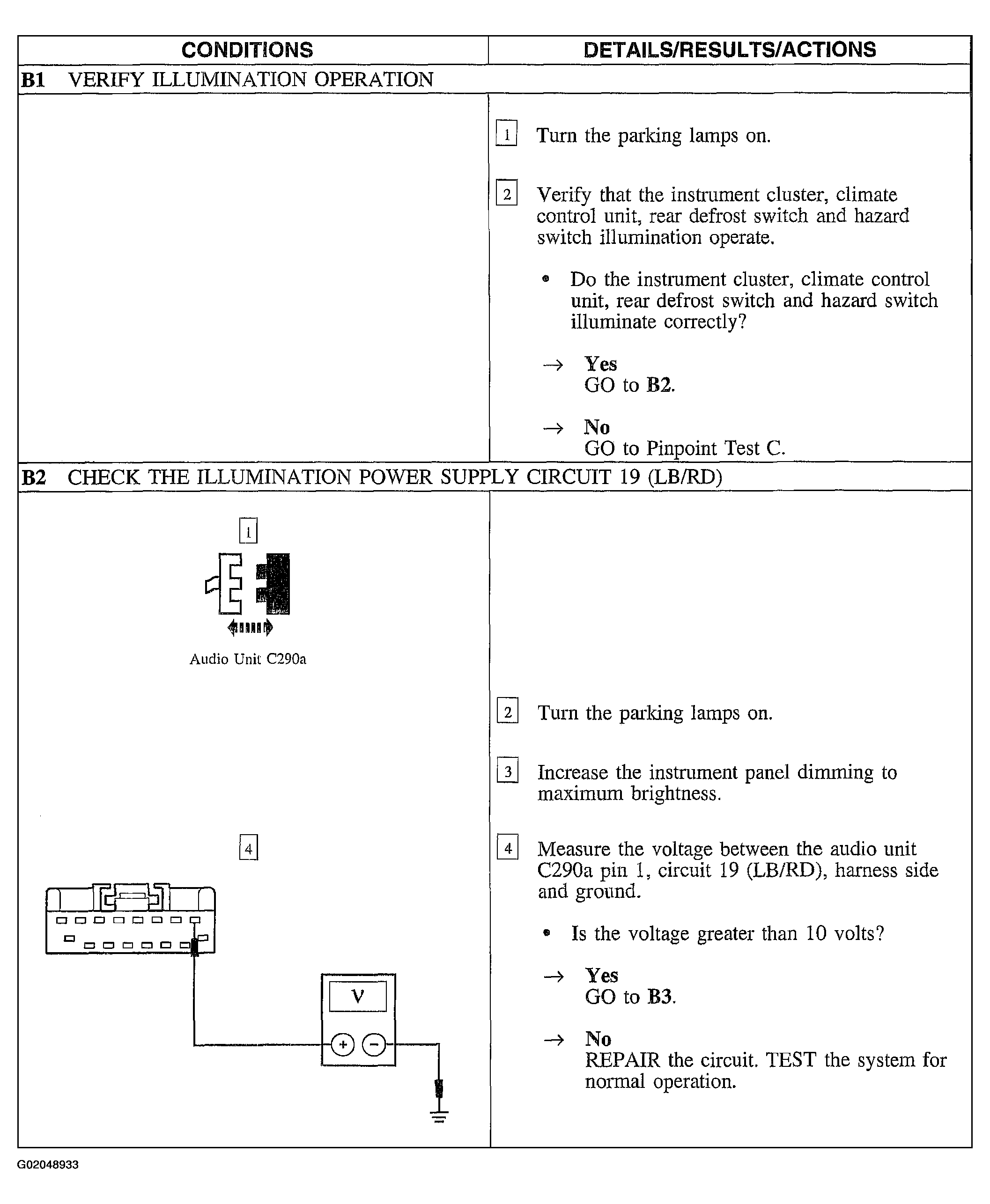

Fig 1: Pinpoint Test B: The Audio System Illumination Is Inoperative (Steps B1 & B2)
G02048933Courtesy of FORD MOTOR CO.

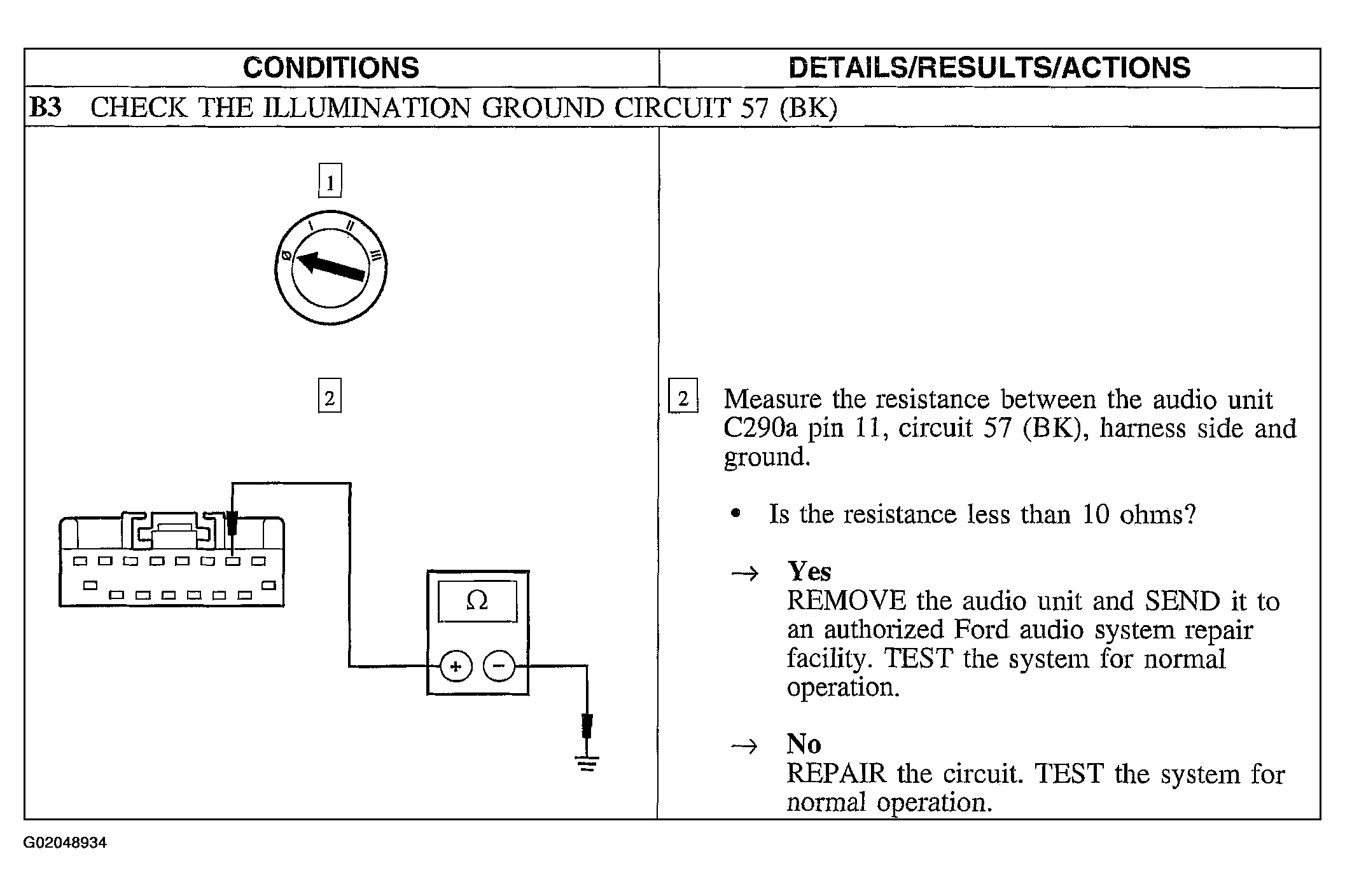

Fig 2: Pinpoint Test B: The Audio System Illumination Is Inoperative (Step B3)
G02048934Courtesy of FORD MOTOR CO.
