Removal & Installation

Remove the rear drum brake shoes. See BRAKE SHOES .
Remove the ABS cable bracket bolt (if equipped). See Fig 1 .
Remove the rear parking brake cable to trailing arm bracket bolts. See Fig 2 .
Disconnect the rear parking brake cable from the backing plates. See Figure .
Remove the rear parking brake cable bracket bolts. See Fig 3 .
Disconnect the right side rear parking brake cable from the front parking brake cable. Disconnect the right side rear parking brake cable from the body-mounted parking brake cable support bracket. See Figure .
Disconnect the left rear parking brake cable to fuel tank support strap. See Fig 4 .
Disconnect the front parking brake cable.
Remove the two bolts. Disconnect the left rear parking brake cable from the body-mounted parking brake cable support bracket. See Fig 5 .
To install, reverse the removal procedure.

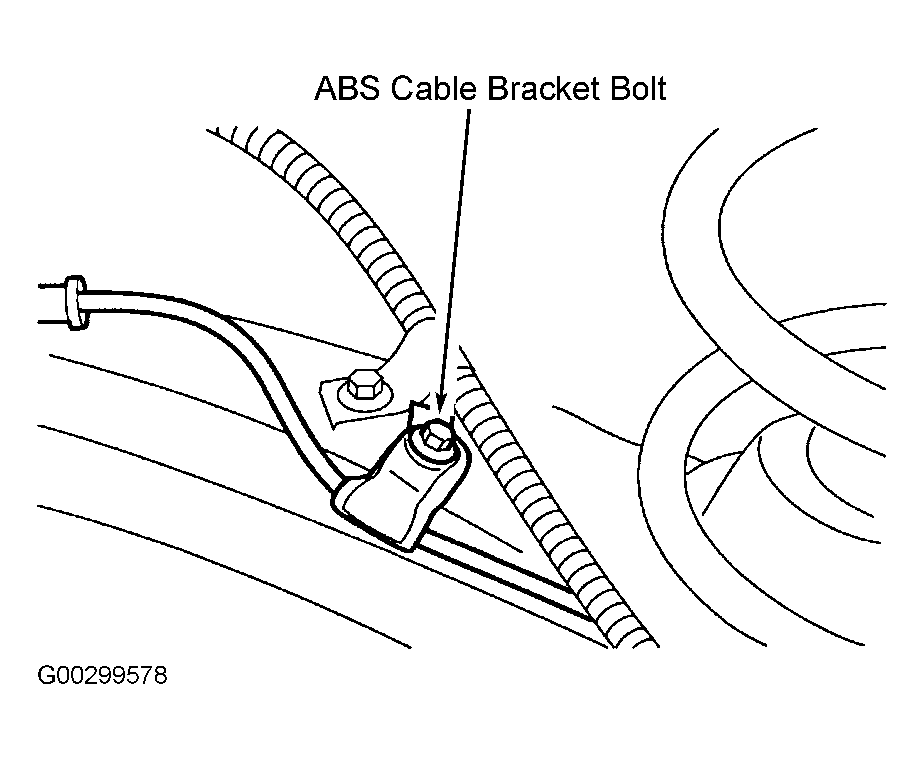

Fig 1: Identifying ABS Cable Bracket Bolt

Courtesy of FORD MOTOR CO.

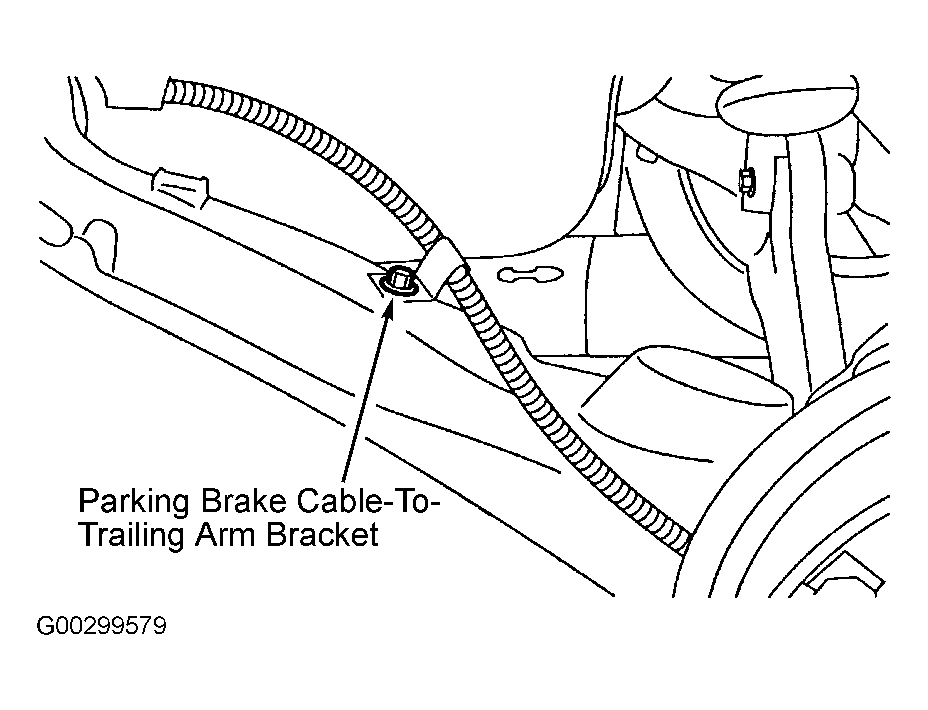

Fig 2: Identifying Parking Brake Cable-To-Trailing Arm

Courtesy of FORD MOTOR CO.

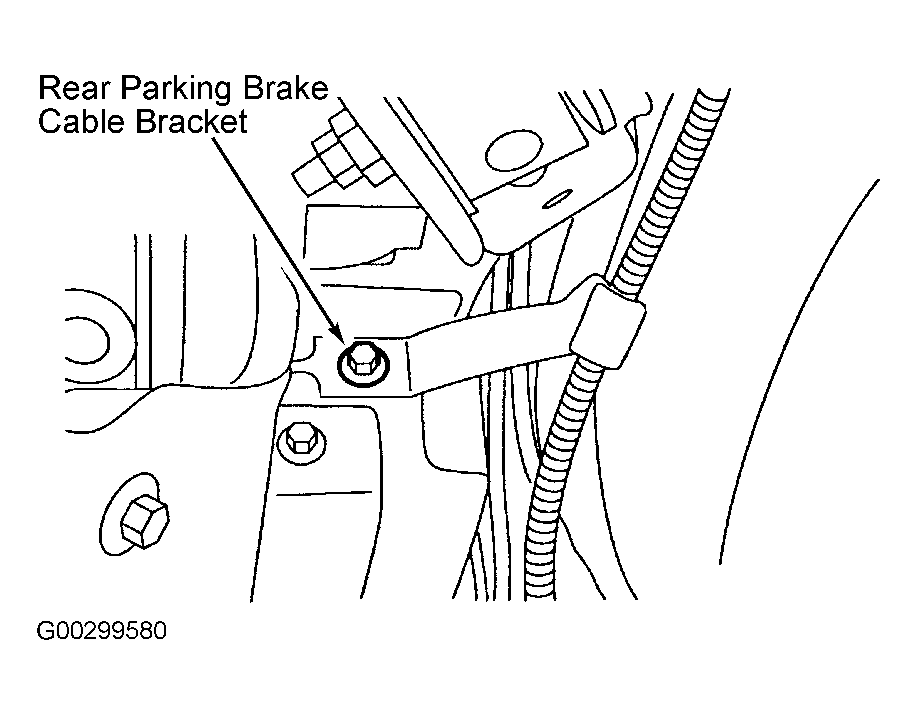

Fig 3: Identifying Rear Parking Brake Cable Bracket

Courtesy of FORD MOTOR CO.

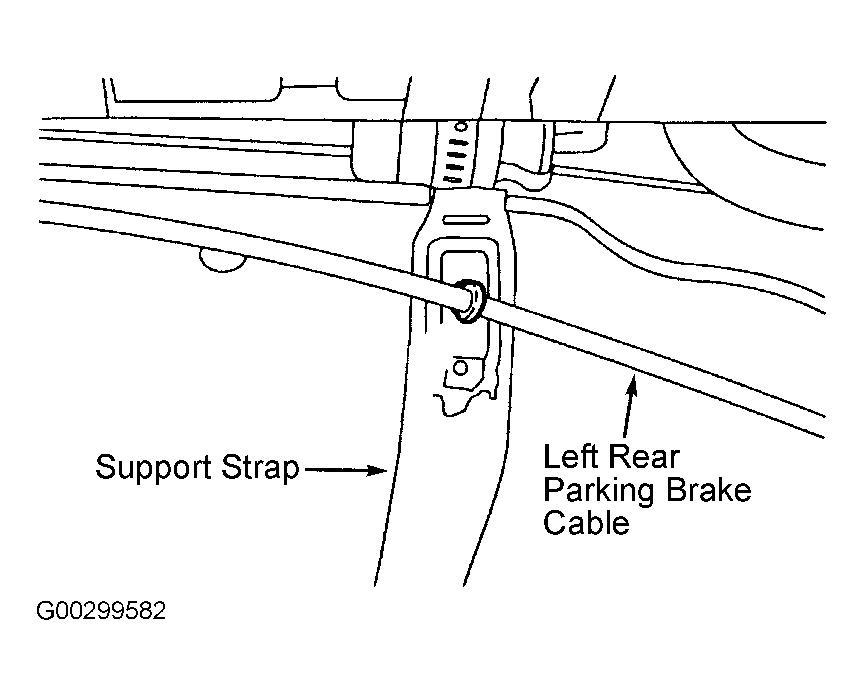

Fig 4: Identifying Left Rear Parking Brake Cable-To-Fuel Tank Support Strap

Courtesy of FORD MOTOR CO.

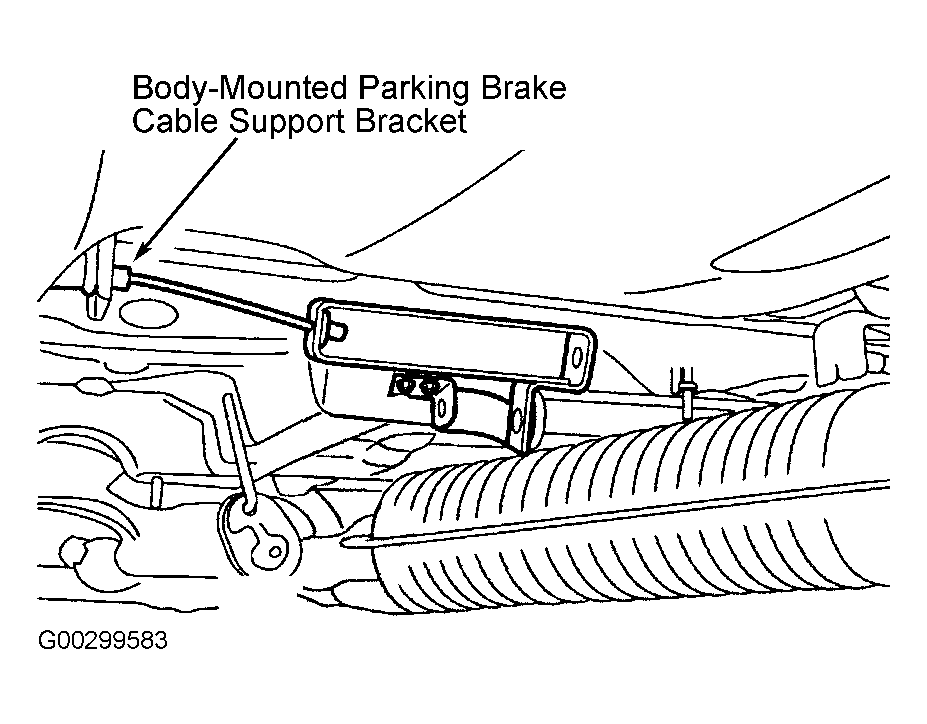

Fig 5: Identifying Body-Mounted Parking Brake Cable Support Bracket

Courtesy of FORD MOTOR CO.
