Removal & Installation

  1. Disconnect the six brake line fittings and plug the brake lines. See .Fig 1 Remove the brake pressure control valve bolts.
  2. To install, reverse the removal procedure. Bleed the brake system. See BLEEDING BRAKE SYSTEM  .

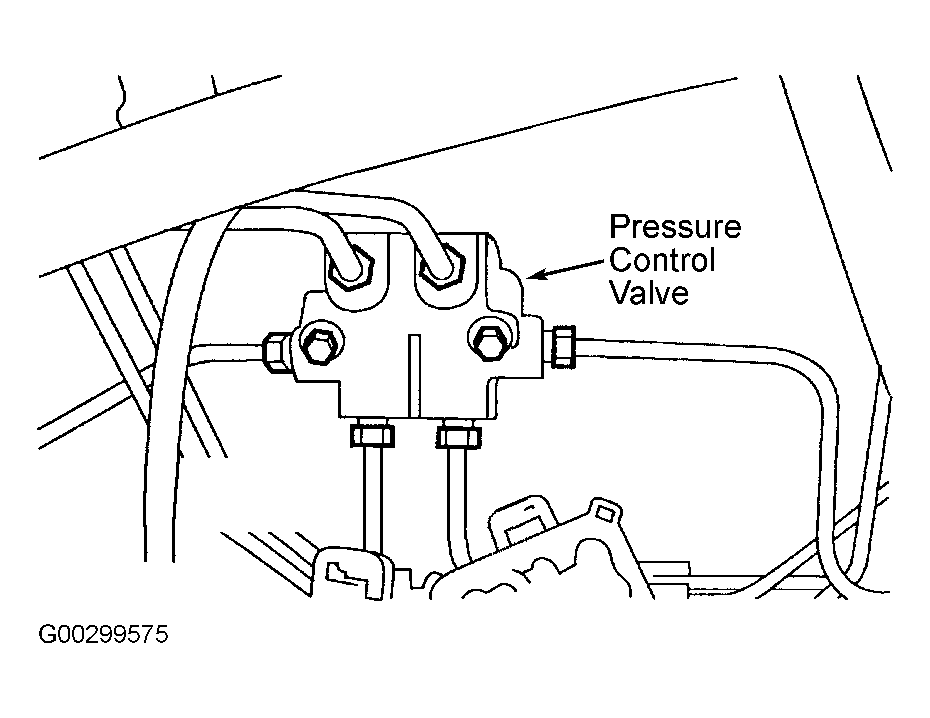

Fig 1: Identifying Brake Pressure Control Valve
G00299575Courtesy of FORD MOTOR CO.
