Instrument Cluster

Instrument cluster consists of the following gauges and indicators. See Fig 1.

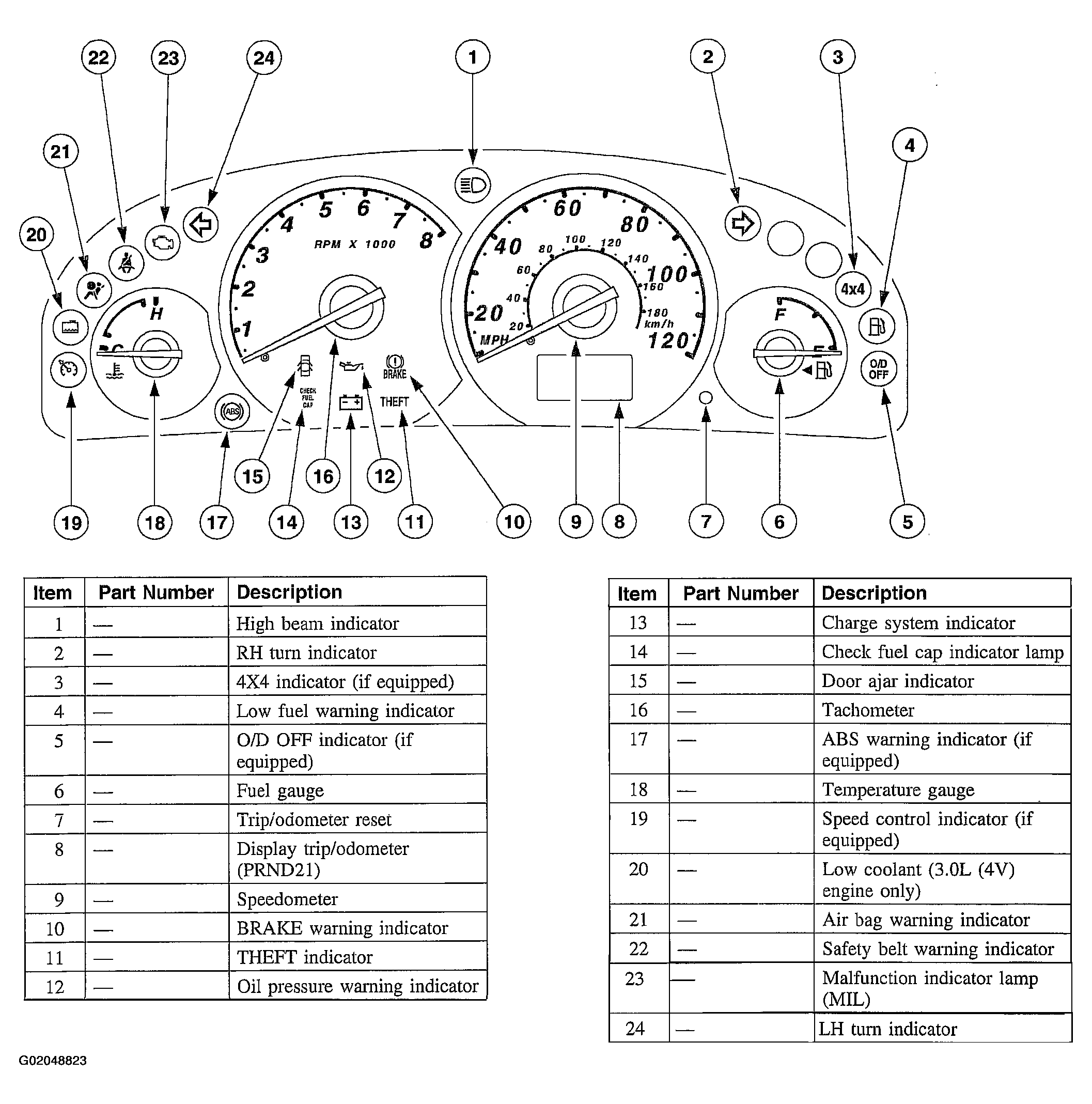

Fig 1: Identifying Instrument Cluster Components

G02048823

Courtesy of FORD MOTOR CO.
