Removal and Installation

Disconnect the battery ground cable.
Lower the glove compartment.
- Press the glove compartment release tabs inward while pulling downward on the glove compartment.

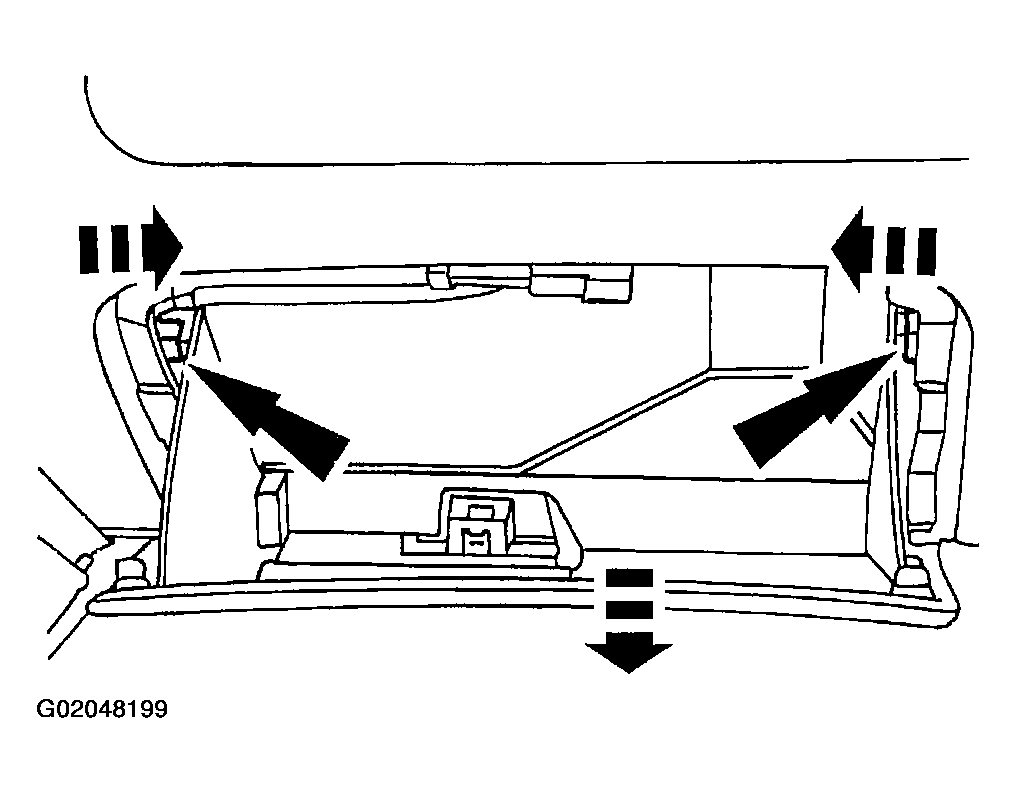

  Fig 1: Lowering Glove Compartment
  Courtesy of FORD MOTOR CO.
Disconnect the temperature control cable.
1. Position the locator pin.
2. Release the locking tab.
3. Remove the temperature control cable from the blend door shaft.

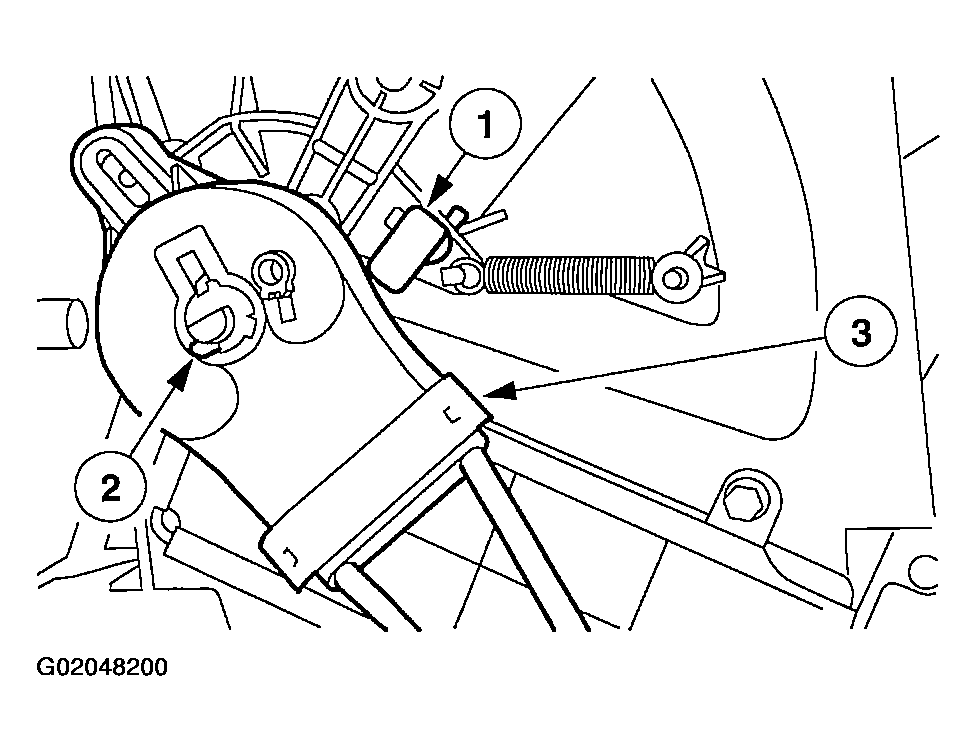

  Fig 2: Positioning Locator Pin (1), Releasing Locking Tab (2) & Removing Temperature Control Cable From Blend Door Shaft (3)
  Courtesy of FORD MOTOR CO.
Remove the instrument panel center finish panel.
- Disconnect the electrical connectors.

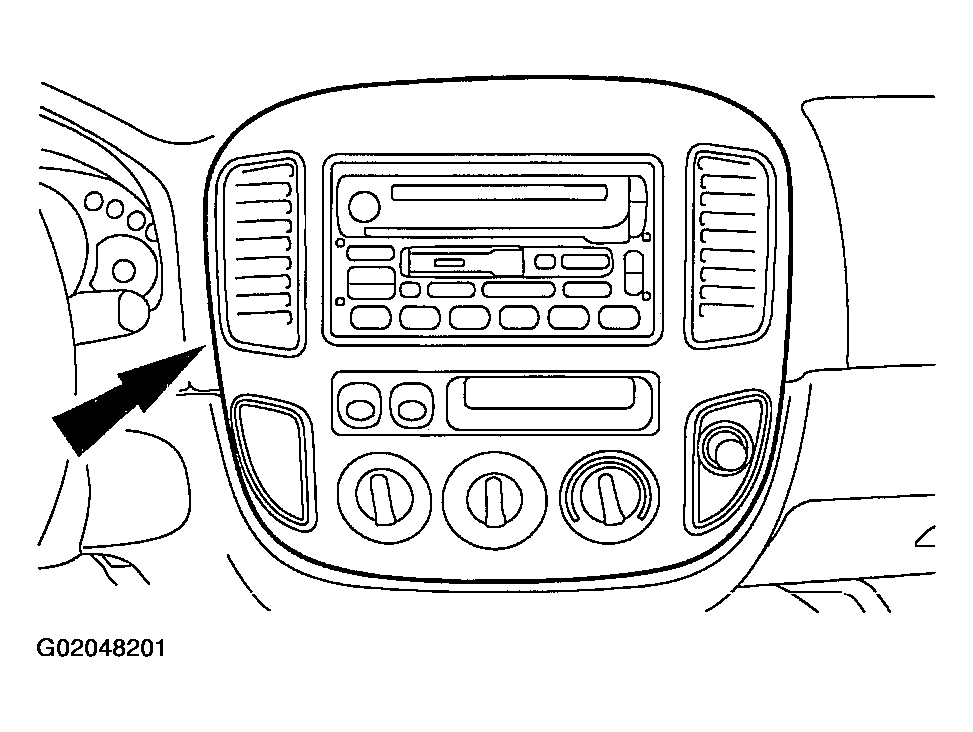

  Fig 3: Removing Instrument Panel Center Finish Panel
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
