Removal and Installation

  1. Remove the instrument panel dimmer switch.
  2. Disconnect the electrical connector.

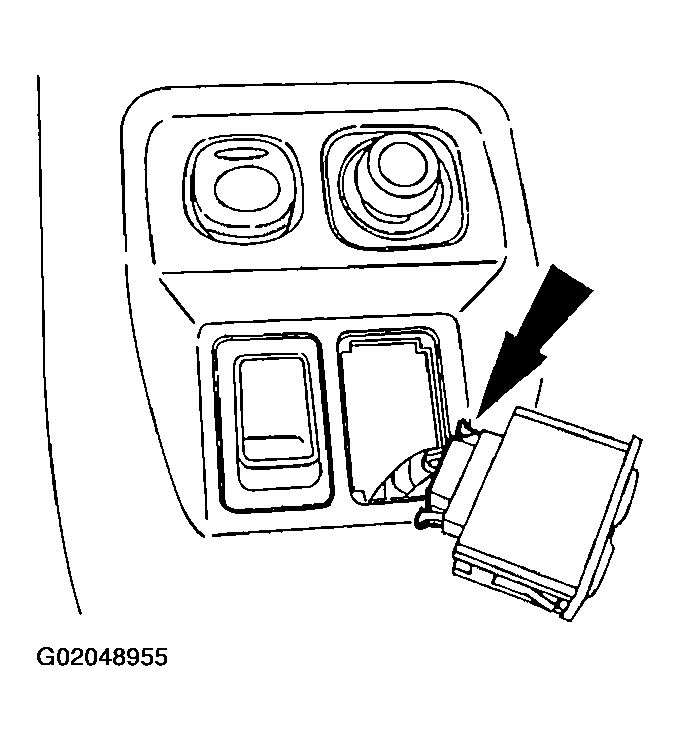

    Fig 1: Disconnecting Instrument Panel Dimmer Switch Electrical Connector
    G02048955Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
