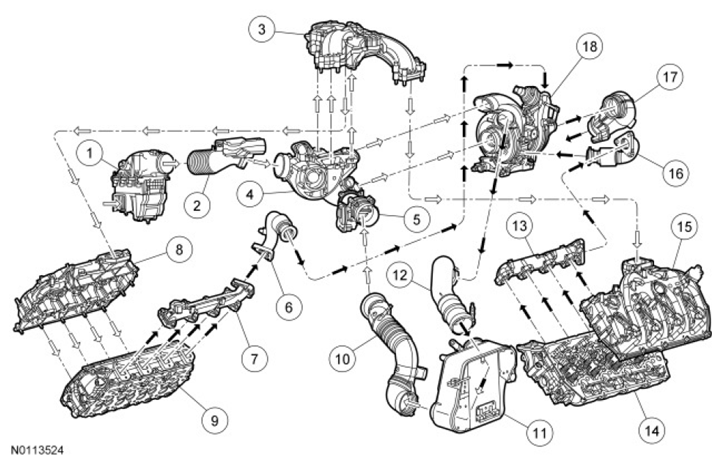

System Diagram: Turbocharger
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Black arrows indicate hot air, white arrows indicate cooled air.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9600 | Air Cleaner (ACL) assembly |
| 2 | 9F805 | ACL outlet pipe |
| 3 | 9424 | Upper intake manifold |
| 4 | 9424 | Lower intake manifold |
| 5 | 9E926 | Throttle Body (TB) |
| 6 | 9G437 | RH turbocharger inlet pipe |
| 7 | 9430 | RH exhaust manifold |
| 8 | 6582 | RH valve cover |
| 9 | 6049 | RH cylinder head |
| 10 | 6C646 | Charge Air Cooler (CAC) outlet tube |
| 11 | 6K775 | CAC |
| 12 | 6F073 | CAC inlet tube |
| 13 | 9431 | LH exhaust manifold |
| 14 | 6049 | LH cylinder head |
| 15 | 6582 | LH valve cover |
| 16 | 9G437 | LH turbocharger inlet pipe |
| 17 | 6N647 | Exhaust downpipe |
| 18 | 6K682 | Turbocharger |
