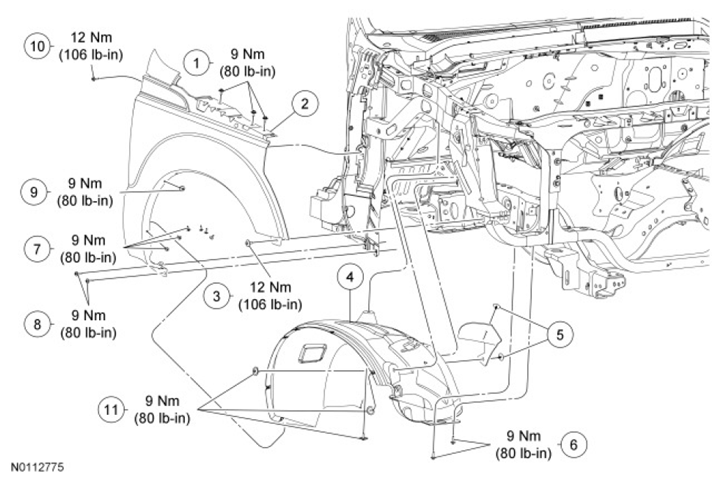

Front End Body Panels - Exploded View
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W714339 | Top fender bolts (3 required) |
| 2 | 16005/ 16006 | Front fender (RH/LH) |
| 3 | N805737 | Lower front fender bolt (1 required) |
| 4 | 16054/ 16055 | Fender splash shield (RH/LH) |
| 5 | N808842 | Fender splash shield trim push pin (2 required) |
| 6 | W711006 | Lower front splash shield bolts (2 required) |
| 7 | W712559 | Front fender splash shield to fender bolts (6 required) |
| 8 | W711006 | Lower rear fender bolts (2 required) |
| 9 | W710542 | Inner rear fender bolt |
| 10 | W712672 | Upper rear fender bolt |
| 11 | W713873 | Fender splash shield bolts (3 required) |
- For additional information, refer to the appropriate procedures in the service information.
