Disassembly And Assembly Of Subassemblies: Piston: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil
XO-10W30-QSD		 WSS-M2C171-E

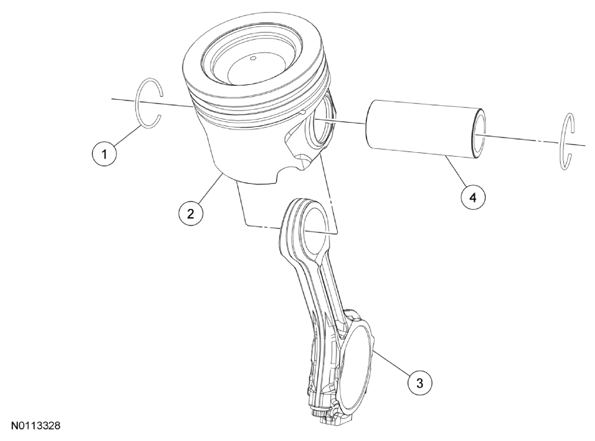

Fig 1: Identifying Piston Components
G07970508Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6140 Piston pin retainer (2 required)
2 6108 Piston
3 6200 Connecting rod
4 6135 Piston pin
