Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Valve Spring Compressors on the cylinder head.

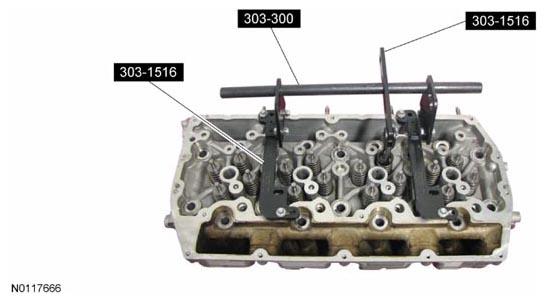

    Fig 1: Installing Valve Spring Compressors On Cylinder Head
    G07970507Courtesy of FORD MOTOR CO.
    2. NOTE: It will be necessary to adjust the Valve Spring Compressor as needed to get proper alignment with the valves.
    NOTE: Position the cylinder head on 2 pieces of wood to aid on removing the valves.
  2. Using the Valve Spring Compressor, compress the valve spring and remove the valve stem keys.
  3. Remove the valve spring retainer and valve spring.
    4. NOTE: It may be necessary to file the tip of the valve to aid in removal of the valve from the cylinder head.
  4. Remove the valve.
  5. Remove and discard the valve seal assembly.
  6. Clean and inspect the valves, valve guides and valve seats. Replace components that are damaged or out of specification. For additional information, refer to Specifications .
