Valve Cover - RH: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil XO-10W30-QSD |
WSS-M2C171-E |

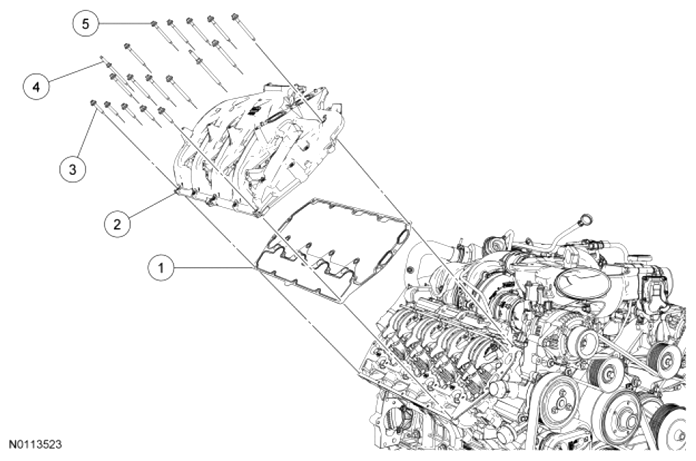

| Item | Part Number | Description |
|---|---|---|
| 1 | 6584 | RH valve cover gasket |
| 2 | 6582 | RH valve cover |
| 3 | W714929 | RH valve cover bolt (5 required) |
| 4 | W710138 | RH valve cover stud bolt (2 required) |
| 5 | W714930 | RH valve cover bolt (11 required) |
