LH Rocker Arm

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

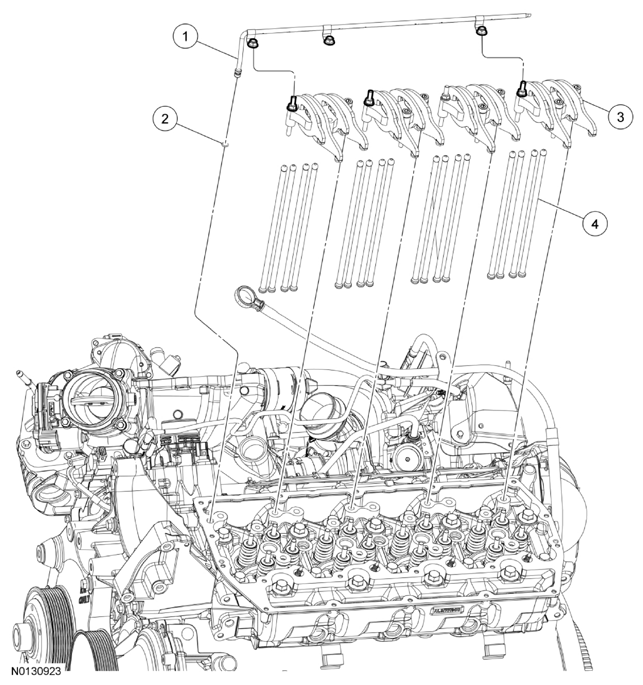

Fig 1: Identifying LH Rocker Arm Components
G07970138Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6578 Oil spray bar
2 8527 Oil spray bar O-ring seal
3 6A582 Rocker arm assembly (4 required)
4 6565 Push rod (16 required)
