Oil Pump Screen and Pickup Tube: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil
XO-10W30-QSD		 WSS-M2C171-E

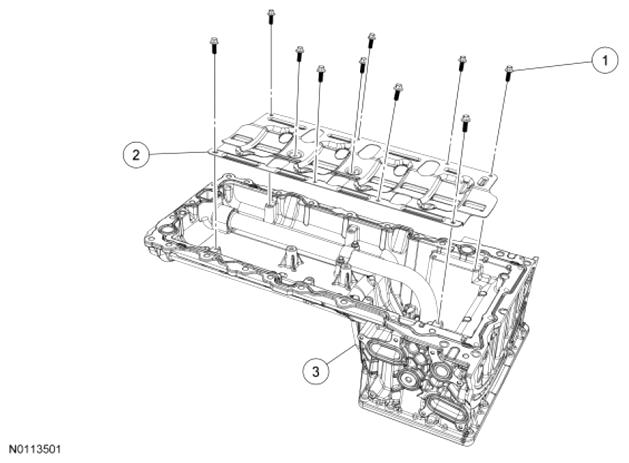

Fig 1: Identifying Oil Pump Screen And Pickup Tube Components
G07480934Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500813 Oil pan baffle bolt (10 required)
2 - Oil pan baffle (part of 6675)
3 6675 Upper oil pan

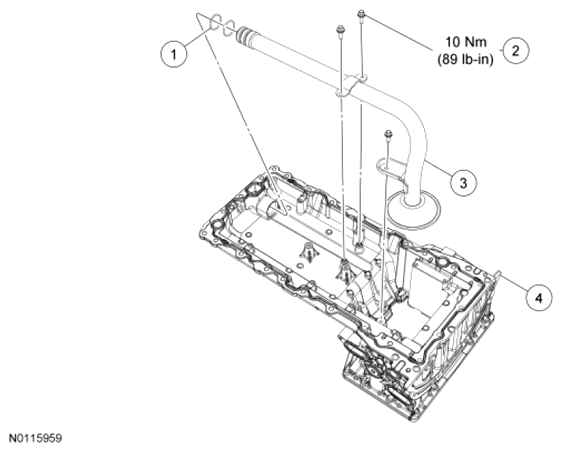

Fig 2: Pickup Tube Replacement Components With Torque Specifications
G07480935Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6626 O-ring seal (2 required)
2 W503274 Oil pump screen and pickup tube bolt (3 required)
3 6615 Oil pump screen and pickup tube
4 6675 Upper oil pan
