Oil Pan - Lower: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Late build vehicles

Apply a 3.4 mm (0.133 in) diameter bead of sealant 1.0 mm (0.039 in) outward of the chamfer on the lower oil pan sealing face.

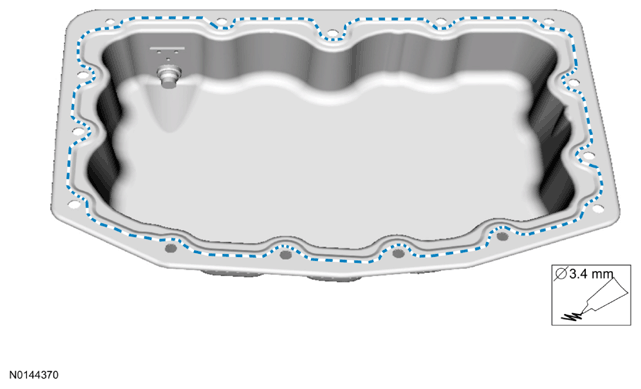

Fig 1: Identifying Sealant Applying Area Of Chamfer On Lower Oil Pan Sealing Face
Courtesy of FORD MOTOR CO.

All vehicles

NOTE: On early build vehicles, install a new gasket.

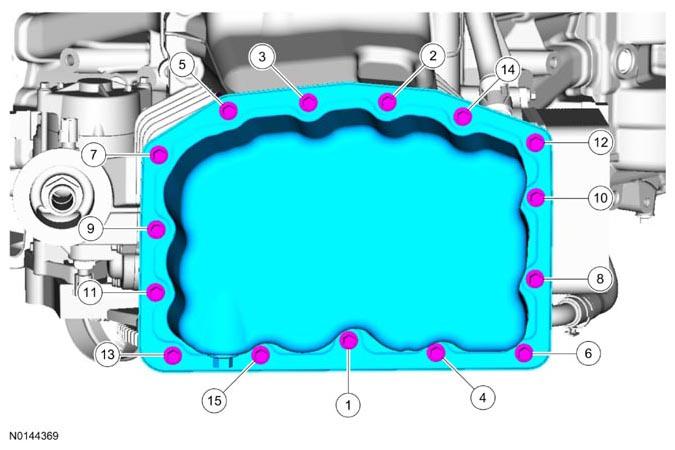

Fig 2: Identifying Lower Oil Pan Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

Install the lower oil pan and the 15 bolts. Tighten in the sequence shown.
- Tighten to 10 Nm (89 lb-in).
Fill the engine with the correct engine oil for the climate. Refer to the Engine for additional oil and fill information.
