Oil Level Indicator and Upper Oil Level Indicator Tube
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

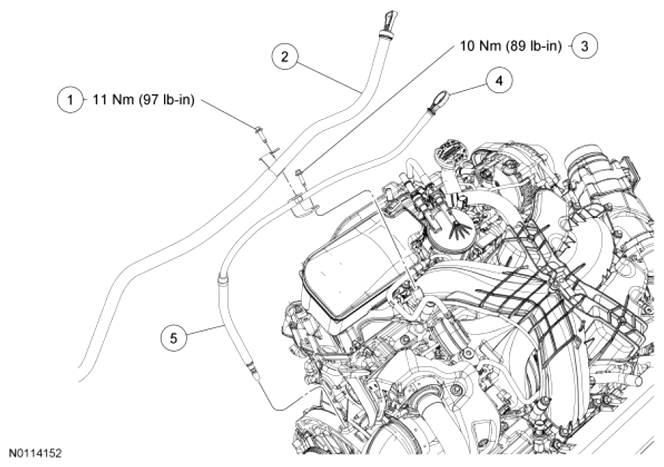

Fig 1: Oil Level Indicator And Upper Oil Level Indicator Tube Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W500214 | Transmission oil level tube bolt |
| 2 | 7A228 | Transmission oil level tube |
| 3 | W500214 | Oil level indicator tube bolt |
| 4 | 6750 | Oil level indicator |
| 5 | 6754 | Oil level indicator tube |
