Crankshaft Rear Seal: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Installer, Rear Crank Seal 303-1514 |
|
| Remover, Rear Crank Seal 303-1513 |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil XO-10W30-QSD |
WSS-M2C171-E |

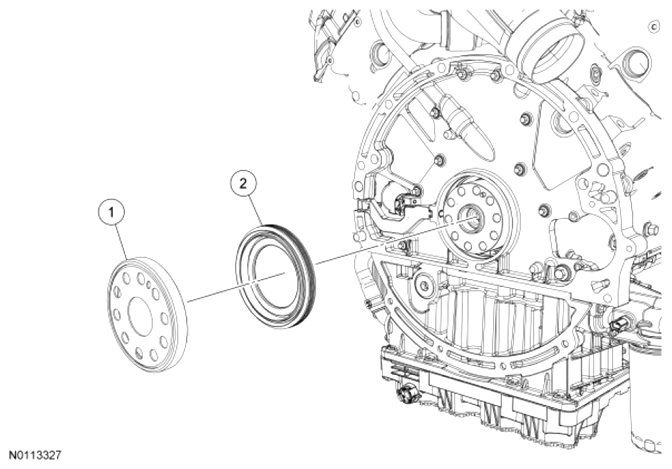

| Item | Part Number | Description |
|---|---|---|
| 1 | 12A227 | Crankshaft sensor pulse ring |
| 2 | 6701 | Rear crankshaft seal |
