Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: To prevent engine damage, always install 4 new bolts when installing the crankshaft pulley.
    NOTE: Use the Strap Wrench to prevent the engine from turning while tightening the bolts.

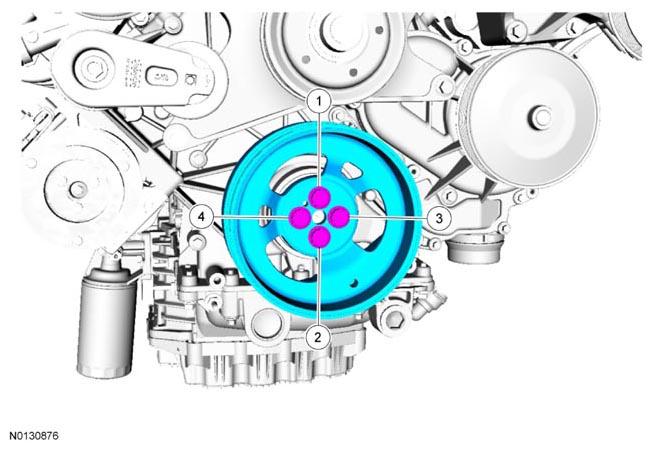

    Fig 1: Identifying Crankshaft Pulley Bolts Tightening Sequence
    G07970107Courtesy of FORD MOTOR CO.
  1. Position the crankshaft pulley and install 4 new bolts. Tighten in 2 stages, in the sequence shown.
    • Stage 1: Tighten to 30 Nm (22 lb-ft).
    • Stage 2: Tighten an additional 90 degrees.
  2. Install the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  3. Install the cooling fan stator and cooling fan. For additional information, refer to ENGINE COOLING - DIESEL ENGINE .
