Cooling System Condition Evaluation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the following table to evaluate the cooling system condition and choose the correct procedure to restore the system.

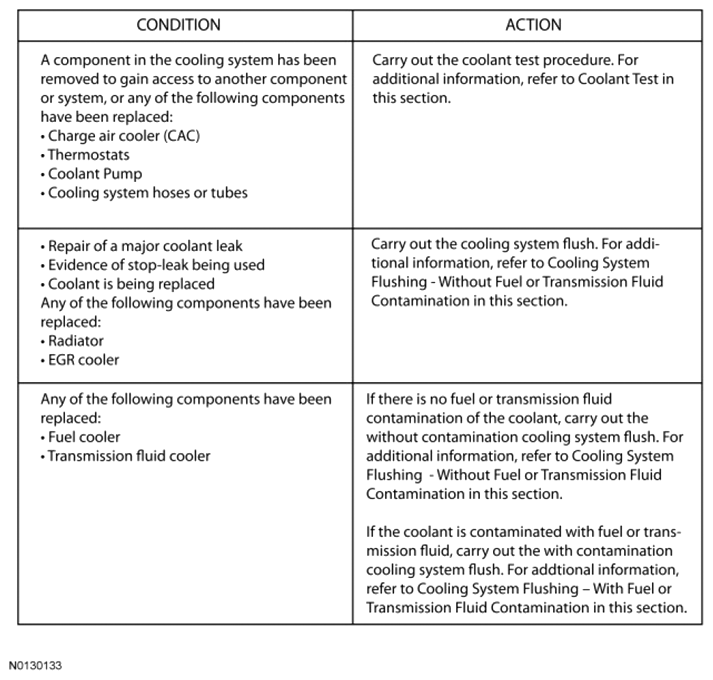

    Fig 1: Cooling System Condition Evaluation Table
    G07481687Courtesy of FORD MOTOR CO.
