Gearmotor Encoder Assembly: Material
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item |
Specification |
Multi-Purpose Grease
XG-4 and/or XL-5 |
ESB-M1C93-B |

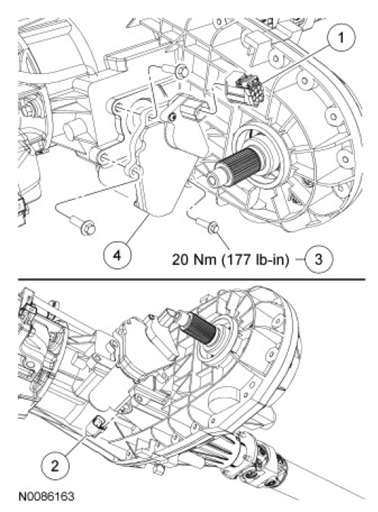

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
- |
Electrical connector |
| 2 |
- |
Electrical connector |
| 3 |
- |
Gearmotor encoder bolt (3 required) |
| 4 |
- |
Gearmotor encoder assembly |
