Differential Case and Ring Gear - Conventional: Disassembly

WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential carrier. For additional information, refer to DIFFERENTIAL CARRIER .
  2. Using the Differential Carrier Bearing Step Plate, Differential Carrier Bearing Collects, Differential Carrier Bearing Retaining Ring, Bearing Tube Remover/Installers, Bearing Tube Removal Screw, remove and discard the differential bearings.
    • Place the left and right differential bearing shims with the respective outboard spacers.
    Fig 1: Removing Differential Bearings Using Special Tools
    G06776611Courtesy of FORD MOTOR CO.
  3. Remove and discard 8 of the differential ring gear bolts. Leave 4 differential ring gear bolts loosely assembled, 90 degrees apart.
    NOTE: Whenever removing the differential ring gear bolts, always install new Grade 9 differential ring gear bolts.
    Fig 2: Identifying Ring Gear Bolts
    G06776612Courtesy of FORD MOTOR CO.
  4. Tap each differential ring gear bolt head alternately with a rawhide or plastic hammer to loosen the differential ring gear. Remove and discard the 4 differential ring gear bolts. Remove the differential ring gear.
    Fig 3: Tapping Differential Ring Gear Bolt Head Using Special Tool
    G06776613Courtesy of FORD MOTOR CO.
  5. Place the differential case in a vise.
    NOTE: Use a vise with brass jaws or wood blocks.
  6. Using a suitable tool, drive out the differential pinion shaft lockpin.

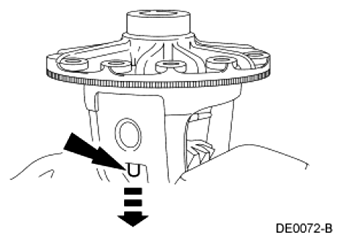

    Fig 4: Removing Differential Pinion Shaft Lockpin Using Suitable Tool
    G06776828Courtesy of FORD MOTOR CO.
  7. Using a suitable tool, remove the differential pinion shaft.
    Fig 5: Removing Differential Pinion Shaft Using Suitable Tool
    G06594936Courtesy of FORD MOTOR CO.
  8. To remove the differential side gears and the differential pinion gears, rotate the differential side gears. The differential pinion gears will turn to the opening in the differential case.
    Fig 6: Locating Differential Side Gears And Differential Pinion Gears
    G06594937Courtesy of FORD MOTOR CO.
  9. Remove the differential pinion gears and the differential pinion thrust washers.
  10. Lift out the differential side gears and the differential side gear thrust washers.
