Turbine Shaft Speed (TSS) Sensor & Intermediate Shaft Speed Sensor: Removal

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the Turbine Shaft Speed (TSS) and intermediate shaft speed sensor connector.

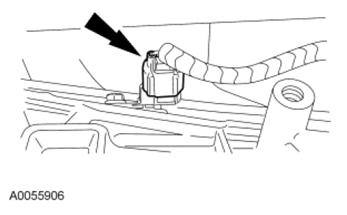

Fig 1: Locating Turbine Shaft Speed And Intermediate Shaft Speed Sensor Connector
Courtesy of FORD MOTOR CO.

NOTE: Prior to removing the sensor, make sure that the area around the sensor is free of foreign material to prevent contamination entering the transmission.

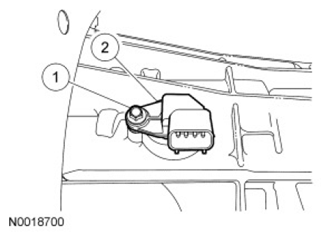

Fig 2: Identifying TSS And Intermediate Shaft Speed Sensor And Bolt

Courtesy of FORD MOTOR CO.

Remove the TSS and intermediate shaft speed sensor.
1. Remove the bolt.
2. Remove the TSS and intermediate shaft speed sensor.
