Material Specifications
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC | MERCON® LV |

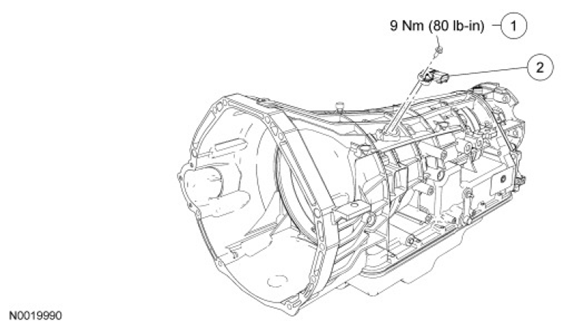

Fig 1: Turbine Shaft Speed And Intermediate Shaft Speed Sensor Replacement Components With Torque Specifications
ITEM S DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | N805503 | Turbine Shaft Speed (TSS) and intermediate shaft speed sensor retaining bolt |
| 2 | 7M101 | TSS and intermediate shaft speed sensor |
