Transmission Support Insulator: Removal

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING & LIFTING article.
    2. NOTE: The transmission insulator studs may come out of the insulator while removing the insulator-to-crossmember nuts. Install new transmission insulator studs if the studs come out.
  2. Remove the transmission support crossmember. For additional information, refer to FULL FRAME AND BODY MOUNTING article.
  3. Remove the transmission insulator from the extension housing.
    • Discard the bolts.

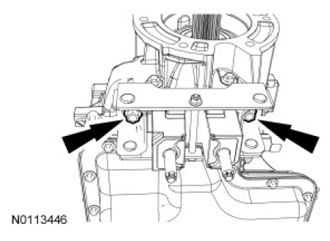

    Fig 1: Locating Transmission Insulator-To-Extension Housing Bolts
    G07482323Courtesy of FORD MOTOR CO.
