Transmission Fluid Temperature (TFT) Sensor: Installation
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

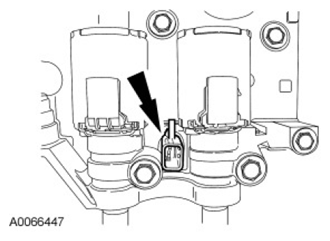

- Lubricate the O-ring seal with transmission fluid and install a new TFT sensor. Make sure to slightly rotate the sensor clockwise to lock it in place.

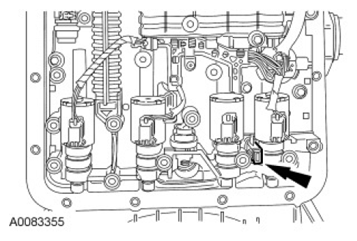

- Connect the TFT sensor.
- Install the transmission fluid filter, pan gasket and pan. For additional information, refer to FLUID PAN, GASKET AND FILTER in this service information.
- Fill the transmission.
- Add 7.0L (7.5 qt) of transmission fluid to the transmission through the transmission fluid filler tube.
- Start the engine. Move the selector lever through all the gear ranges, checking for engagements.
- Using the scan tool with the engine running, check and make sure the transmission is at normal operating temperature 66-77°C (150-170°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
NOTE:
The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.
