Transmission Fluid Drain & Refill: Draining

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use transmission fluid specific for this transmission. Do not use any supplemental transmission fluid additives or cleaning agents. The use of these products can cause internal transmission components to fail, which will affect the operation of the transmission.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the transmission fluid pan drain plug and allow the transmission fluid to drain.

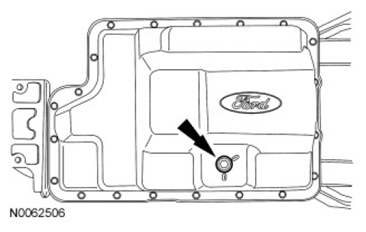

Fig 1: Locating Transmission Fluid Pan Drain Plug
G07482180Courtesy of FORD MOTOR CO.
