Transmission Filler Tube: Installation

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new transmission fluid filler tube O-ring.
    Fig 1: Locating Transmission Fluid Filler Tube O-Ring
    G07482193Courtesy of FORD MOTOR CO.
    2. NOTE: Coat the O-ring at the bottom of the transmission fluid filler tube with transmission fluid.

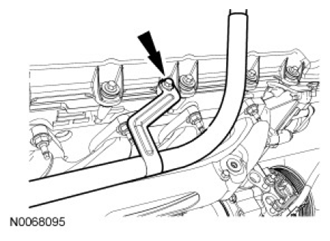

    Fig 2: Locating Bolt And Transmission Fluid Level Indicator Tube
    G07482194Courtesy of FORD MOTOR CO.
  2. Position the transmission fluid level indicator tube and install the bolt.
    • Tighten to 10 Nm (89 lb-in).
  3. Install the transmission fluid level indicator.

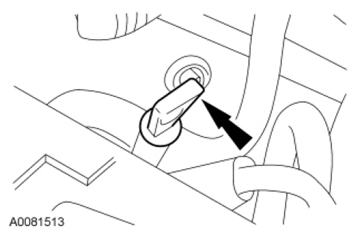

    Fig 3: Locating Transmission Fluid Level Indicator
    G07482195Courtesy of FORD MOTOR CO.
