Solenoid Body Assembly: Removal

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission fluid pan, gasket and filter. For additional information, refer to FLUID PAN, GASKET AND FILTER  in this service information.
  2. Disconnect the transmission vehicle harness connector.

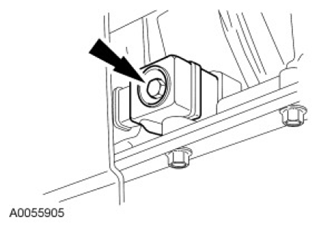

    Fig 1: Locating Transmission Vehicle Harness Connector
    G07482197Courtesy of FORD MOTOR CO.
    3. NOTE: While lowering the solenoid body, the manual valve may fall out of the solenoid body.

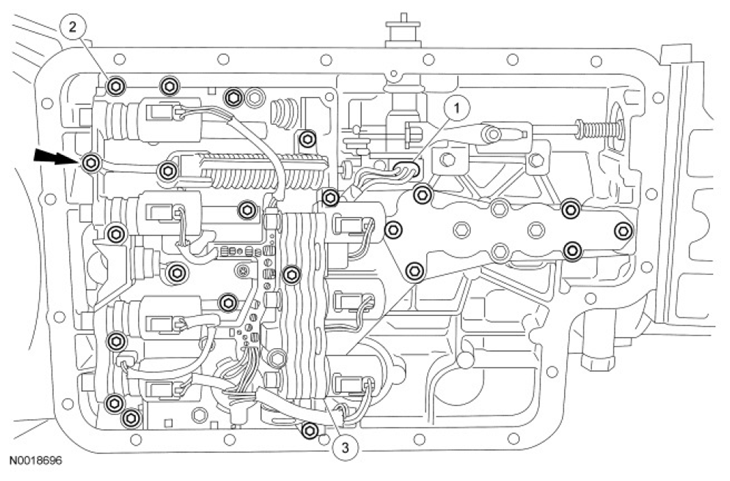

    Fig 2: Locating Solenoid Body Bolts
    G07482198Courtesy of FORD MOTOR CO.
  3. Remove the solenoid body.
    1. Disconnect the Transmission Range (TR) sensor connector.
    2. Remove the solenoid body bolts.
    3. Remove the solenoid body.
  4. Remove the solenoid body gasket.

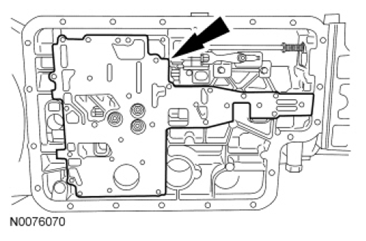

    Fig 3: Locating Solenoid Body Gasket
    G07482199Courtesy of FORD MOTOR CO.
