Solenoid Body Assembly: Installation

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new solenoid body gasket.

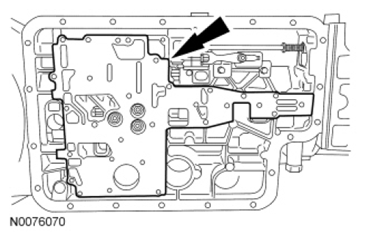

    Fig 1: Locating Solenoid Body Gasket
    G07482200Courtesy of FORD MOTOR CO.
  2. Using the Valve Body Aligner, install the solenoid body and loosely install the bolts.
    • While installing the solenoid body, align the manual valve.

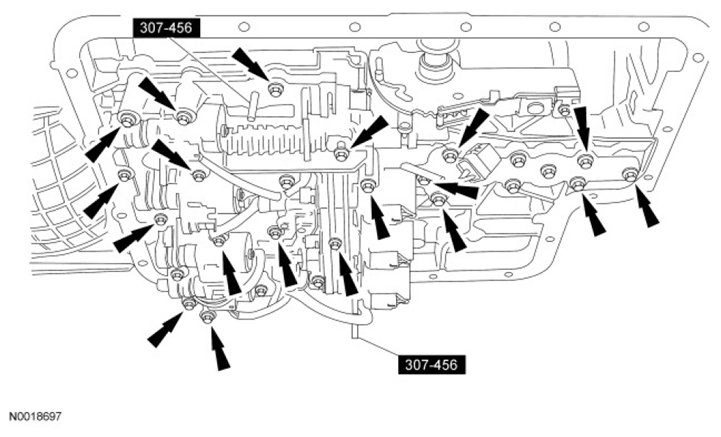

    Fig 2: Locating Solenoid Body And Bolts
    G07482201Courtesy of FORD MOTOR CO.
  3. Tighten all the bolts in the sequence shown in illustration.
    • Tighten to 13 Nm (115 lb-in).

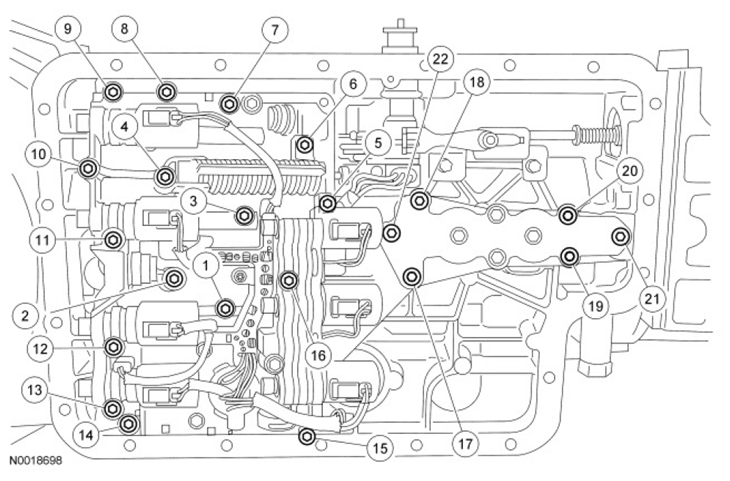

    Fig 3: Identifying Solenoid Body Bolts Tightening Sequence
    G07482202Courtesy of FORD MOTOR CO.
  4. Connect the TR  sensor connector.

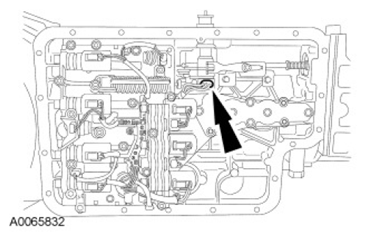

    Fig 4: Locating TR Sensor Connector
    G07482203Courtesy of FORD MOTOR CO.
  5. Install the transmission fluid filter, pan gasket and pan. For additional information, refer to FLUID PAN, GASKET AND FILTER  in this service information.
  6. Connect the transmission vehicle harness connector.
    • Tighten to 5 Nm (44 lb-in).

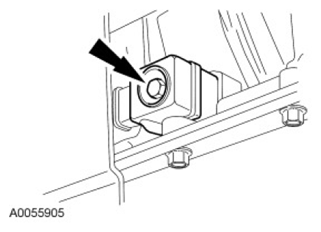

    Fig 5: Locating Transmission Vehicle Harness Connector
    G07482204Courtesy of FORD MOTOR CO.
