Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Disconnect the Output Shaft Speed (OSS) sensor connector.

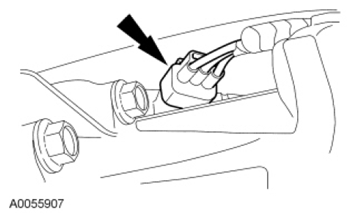

    Fig 1: Locating Output Shaft Speed (OSS) Sensor Connector
    G07482211Courtesy of FORD MOTOR CO.
    3. NOTE: Prior to removing the sensor, make sure that the area around the sensor is free of foreign material to prevent contamination entering the transmission.

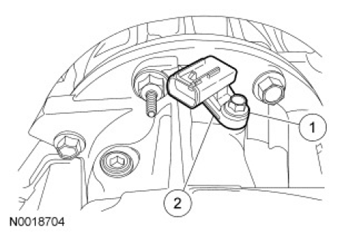

    Fig 2: Identifying OSS Sensor And Bolt
    G07482212Courtesy of FORD MOTOR CO.
  3. Remove the OSS  sensor.
    1. Remove the bolt.
    2. Remove the OSS  sensor.
