Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the OSS  sensor.
    1. Lubricate the O-ring with transmission fluid and install the OSS  sensor.
    2. Install the bolt.
      • Tighten to 9 Nm (80 lb-in).

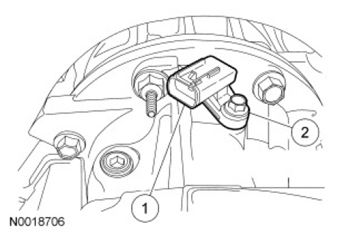

    Fig 1: Identifying OSS Sensor And Bolt
    G07482213Courtesy of FORD MOTOR CO.
  2. Connect the OSS  sensor connector.
    Fig 2: Locating Output Shaft Speed (OSS) Sensor Connector
    G07482214Courtesy of FORD MOTOR CO.
