Line Pressure Control Solenoid - PC-A: Installation

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the main control valve body.
    1. Install the PCA  and install the E clip.
    2. Push the transmission internal harness connector through the solenoid body and twist the connector, locking it into place.
    3. Install the SSPCC  back into place and install the E clip.
    4. Connect the electrical connectors to the PCA  and the SSPCC  .
    5. Install the wire harness to solenoid body and tighten the bolts.

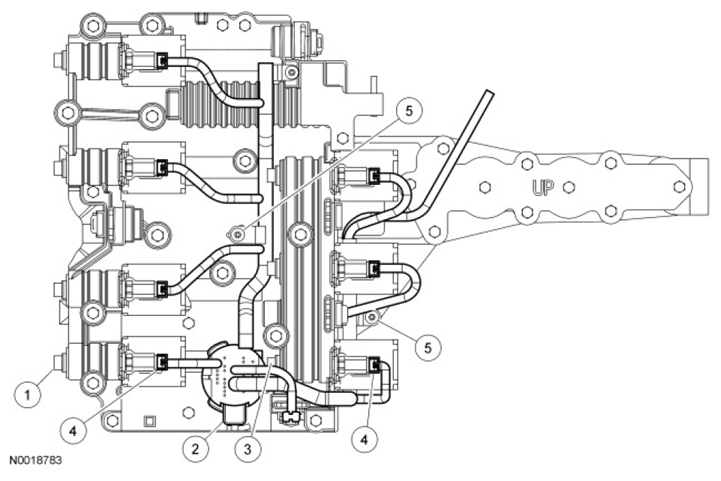

    Fig 1: Identifying E Clips, PCA And SSPCC
    G07482279Courtesy of FORD MOTOR CO.
  2. Install the solenoid body electrical connector O-ring seal, lubricate it with transmission fluid.

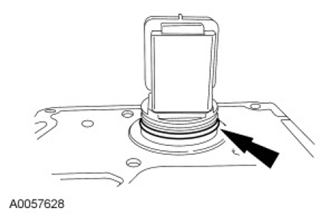

    Fig 2: Locating Solenoid Body Electrical Connector O-Ring Seal
    G07482280Courtesy of FORD MOTOR CO.
  3. Install the transmission main control valve body. For additional information, refer to SOLENOID BODY ASSEMBLY  in this service information.
