Internal Harness Service: Removal

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the solenoid body assembly. For additional information, refer to SOLENOID BODY ASSEMBLY  in this service information.
  2. Disconnect the transmission internal harness.
    1. Remove the 2 screws.
    2. Disconnect the Transmission Fluid Temperature (TFT) sensor.
    3. Disconnect the solenoid connectors.

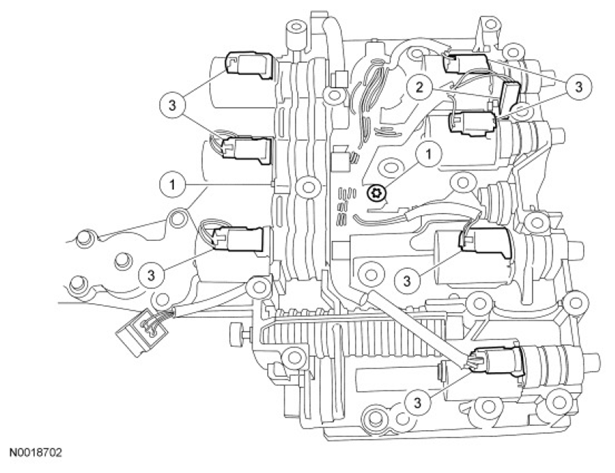

    Fig 1: Identifying Transmission Fluid Temperature (TFT) Sensor, Screws And Solenoid Connectors
    G07482254Courtesy of FORD MOTOR CO.
  3. Remove the transmission internal harness connector O-ring seal.

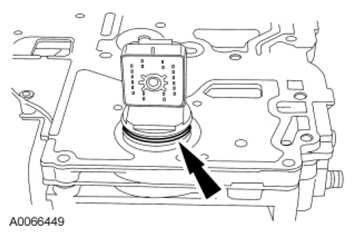

    Fig 2: Locating Transmission Internal Harness Connector O-Ring Seal
    G07482255Courtesy of FORD MOTOR CO.
  4. Lift the tab. Twisting the transmission internal harness connector, push it through the solenoid body and remove the wire harness.
