Internal Harness Service: Installation

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the transmission internal harness connector through the transmission solenoid body, twist it to lock it in place.
  2. Connect the transmission internal harness.
    1. Install the 2 screws.
    2. Connect the TFT  sensor.
    3. Connect the solenoid connectors.

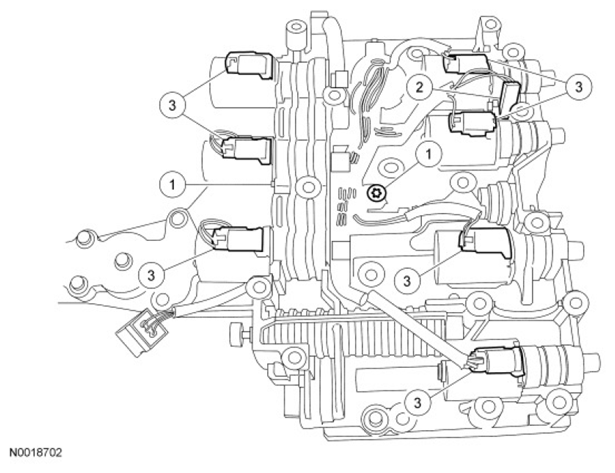

    Fig 1: Identifying Transmission Fluid Temperature (TFT) Sensor, Screws And Solenoid Connectors
    G07482256Courtesy of FORD MOTOR CO.
    3. NOTE: The O-ring seal must be installed in the top slot.

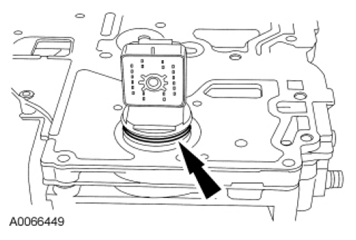

    Fig 2: Locating Transmission Internal Harness Connector O-Ring Seal
    G07482257Courtesy of FORD MOTOR CO.
  3. Install a new solenoid body transmission internal harness connector O-ring seal and lubricate it with automatic transmission fluid.
  4. Install the solenoid body assembly. For additional information, refer to SOLENOID BODY ASSEMBLY  in this service information.
