Special Tool(s)
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Installer, Transmission Extension Housing Seal 307-453 | |
| Remover, Torque Converter Fluid Seal 307-309 (T94P-77001-A) | |
| Remover, Transmission Extension Housing Seal (used with 307-309) 307-454 | |
| Slide Hammer 100-001 (T50T-100-A) | |
| Socket, Output Shaft Locknut 307-458 | |
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

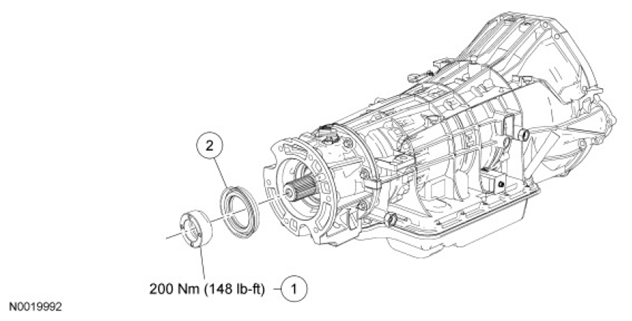

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7085 | Transmission output shaft seal retainer |
| 2 | 7052 | Transmission output shaft seal |
