Input Shell Assembly: Check

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Locating Input Shell Assembly
G07482552Courtesy of FORD MOTOR CO.
  1. Clean and inspect the forward/reverse sun gear and input shell assembly. Check the sun gear teeth, lug teeth and thrust surface for damage. If any evidence of damage is found, a new input shell assembly must be installed.
  2. Inspect the front bushing for damage. If any damage is found a new input shell assembly must be installed.

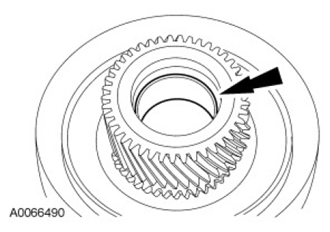

    Fig 2: Locating Front Bushing
    G07482553Courtesy of FORD MOTOR CO.
