Forward Geartrain - Assembly: Assembly

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the forward clutch assembly into the direct clutch assembly.
    Fig 1: Identifying Forward Clutch Assembly And Direct Clutch Assembly
    G07482556Courtesy of FORD MOTOR CO.
  2. Install the No. 9 forward clutch bearing.

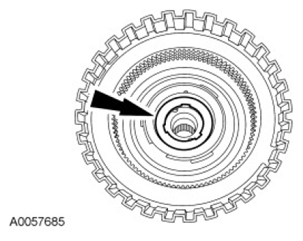

    Fig 2: Locating No. 9 Forward Clutch Bearing
    G07482557Courtesy of FORD MOTOR CO.
  3. Install the forward hub and ring gear assembly.

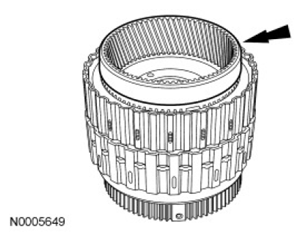

    Fig 3: Locating Forward Hub And Ring Gear Assembly
    G07482558Courtesy of FORD MOTOR CO.
  4. Install the planet carrier and bearing assembly.

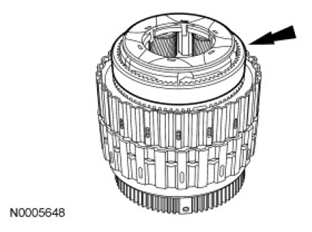

    Fig 4: Locating Planet Carrier And Bearing Assembly
    G07482559Courtesy of FORD MOTOR CO.
  5. Install the No. 12 thrust bearing onto the forward carrier assembly.
    Fig 5: Locating No. 12 Thrust Bearing On Forward Carrier Assembly
    G07482560Courtesy of FORD MOTOR CO.
  6. Install the input shell assembly.
    • Make sure the tab is engaged in the forward clutch assembly.
    Fig 6: Locating Input Shell Assembly
    G07482561Courtesy of FORD MOTOR CO.
  7. Install the Adapter and the Transmission Forward Clutch Assembly Installer. Position aside to use during transmission assembly.

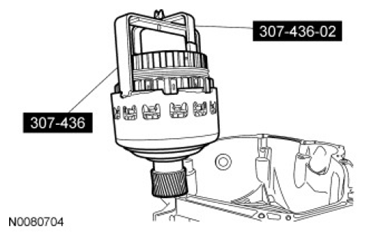

    Fig 7: Installing Adapter And Transmission Forward Clutch Assembly Installer
