Disassembly & Assembly Of Subassemblies: Disassembly: Assembly

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Install a new backing plate gasket, the backing plate and backing plate bolts.
- Tighten to 13 Nm (115 lb-in).

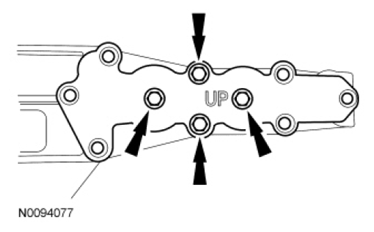

Fig 1: Locating Backing Plate-To-Case Bolts
Courtesy of FORD MOTOR CO.
Install a new backing plate gasket.

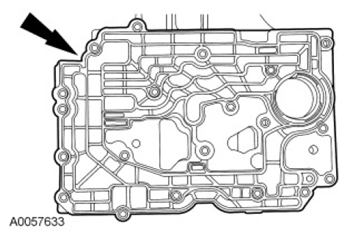

Fig 2: Locating Backing Plate Gasket
Courtesy of FORD MOTOR CO.

NOTE: Tighten the bolts in a crisscross pattern to prevent the gasket from becoming distorted.

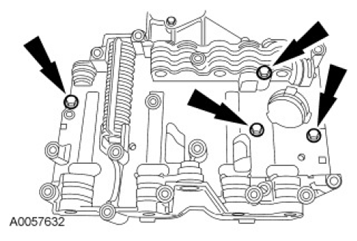

Fig 3: Locating Main Control Valve Body Bolts

Courtesy of FORD MOTOR CO.

Assemble the top and bottom halves of the solenoid body.
- Tighten to 13 Nm (115 lb-in).
Install the TFT sensor.

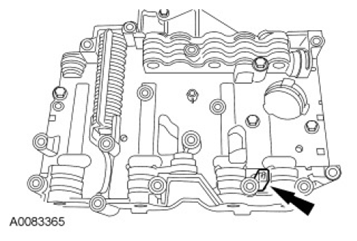

Fig 4: Locating Transmission Fluid Temperature (TFT) Sensor
Courtesy of FORD MOTOR CO.
Install the shift solenoids and the shift solenoid retaining E clips.

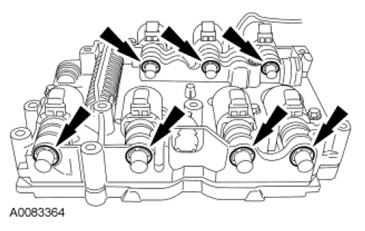

Fig 5: Locating Shift Solenoid Retaining E Clips And Solenoids
Courtesy of FORD MOTOR CO.
Install a new O-ring seal on the bulkhead connector in the uppermost groove. Lubricate the O-ring seal with transmission fluid.

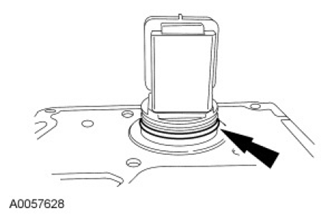

Fig 6: Locating Solenoid Body Electrical Connector O-Ring Seal
Courtesy of FORD MOTOR CO.
Install the main control valve body wiring harness and connect the connectors.

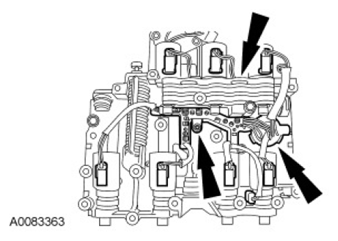

Fig 7: Locating Main Control Valve Body Wiring Harness And Bolts
Courtesy of FORD MOTOR CO.
Install the manual valve.

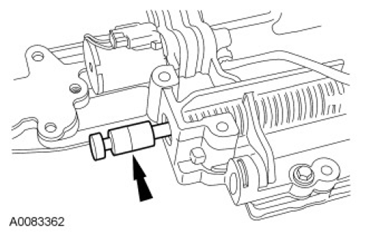

Fig 8: Locating Manual Valve
Courtesy of FORD MOTOR CO.
