Internal Transmission Harness Connector/Component Locator
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

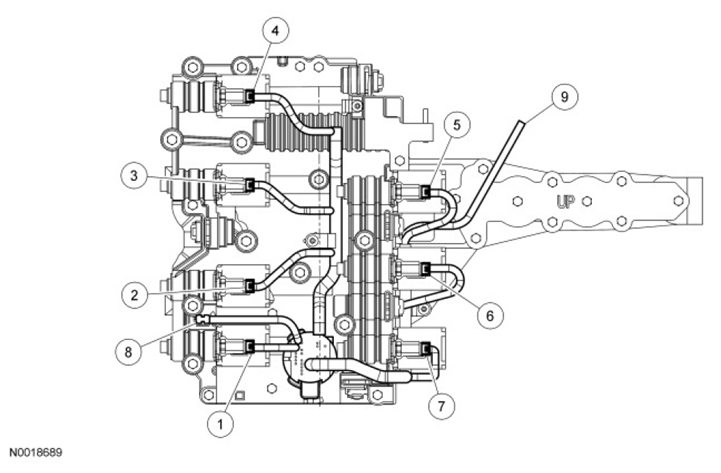

ITEM DESCRIPTION
| Item | Description |
|---|---|
| 1 | Pressure Control Solenoid A (PCA) |
| 2 | Torque Converter Clutch (TCC) |
| 3 | Shift Solenoid Pressure Control B (SSPCB) (overdrive clutch) |
| 4 | Shift Solenoid Pressure Control A (SSPCA) (coast clutch) |
| 5 | Shift Solenoid Pressure Control E (SSPCE) (low/reverse clutch) |
| 6 | Shift Solenoid Pressure Control D (SSPCD) (direct clutch) |
| 7 | Shift Solenoid Pressure Control C (SSPCC) (intermediate clutch) |
| 8 | Transmission Fluid Temperature (TFT) sensor |
| 9 | Transmission Range (TR) sensor |
