Automatic Transmission - Sectional View
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

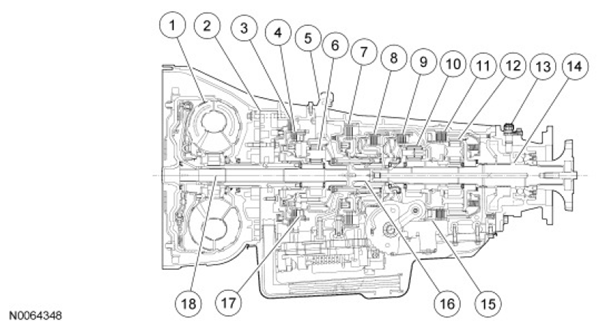

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7902 | Torque converter |
| 2 | 7A103 | Pump assembly |
| 3 | - | Overdrive (O/D) clutch assembly |
| 4 | - | Coast clutch assembly |
| 5 | 7M101 | Turbine Shaft Speed (TSS) intermediate shaft speed sensor |
| 6 | 7B446 | O/D planet assembly |
| 7 | - | Intermediate clutch assembly |
| 8 | 7C108 | Direct clutch assembly |
| 9 | 7A511 | Forward clutch assembly |
| 10 | 7A398 | Forward planet assembly |
| 11 | - | Reverse clutch assembly |
| 12 | 7D006 | Reverse planet assembly |
| 13 | 7H103 | Output Shaft Speed (OSS) sensor |
| 14 | 7060 | Output shaft assembly |
| 15 | 7A089 | Low/reverse rocker One-Way Clutch (OWC) |
| 16 | 7A658 | Center shaft assembly |
| 17 | 7A089 | Coast mechanical diode OWC |
