Valve Cover - LH: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Failure to install the fuel injectors during the valve cover installation may result in engine failure.

NOTE: The valve cover will have to be tightened a second time after the fuel injectors are installed.

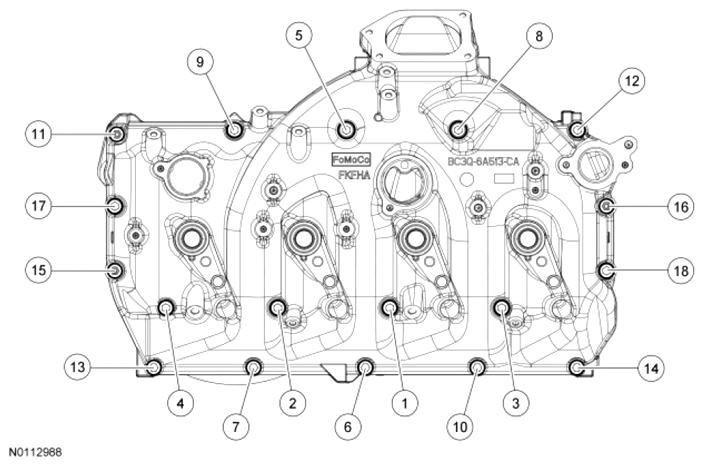

Fig 1: Identifying LH Valve Cover Stud Bolts And Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

Using a new valve cover gasket, install the LH valve cover, 3 stud bolts and 15 bolts. Tighten in the sequence shown in illustration.
- Tighten to 12 Nm (106 lb-in).

NOTE: Do not apply engine oil to the fuel injectors.

NOTE: Only one fuel injector shown in illustration.

NOTE: If the fuel injector is being reused, make sure to install it in the original location.

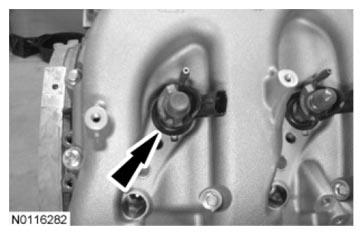

Fig 2: Locating Fuel Injectors

Courtesy of FORD MOTOR CO.

Install a new copper combustion gasket, O-ring seal and fuel injector return fuel O-ring on the 4 fuel injectors.
- Position the 4 fuel injectors into the engine.

NOTE: Failure to tighten the fuel injector correctly can lead to engine failure.

NOTE: Apply clean engine oil to the concave surface of the fuel injector hold-down clamp.

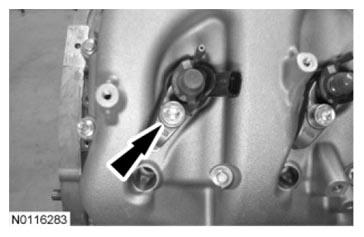

Fig 3: Locating Fuel Injector Bolts

Courtesy of FORD MOTOR CO.

Install the 4 fuel injector hold-down clamps and the 4 new fuel injector bolts. Tighten in 2 stages.
- Stage 1: Tighten to 30 Nm (22 lb-ft).
- Stage 2: Tighten an additional 90 degrees.
Final tighten the valve cover bolts in the sequence shown in illustration.
- Tighten to 12 Nm (106 lb-in).
Fig 4: Identifying LH Valve Cover Stud Bolts And Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
Connect the wire retainer to the rear valve cover stud bolt.

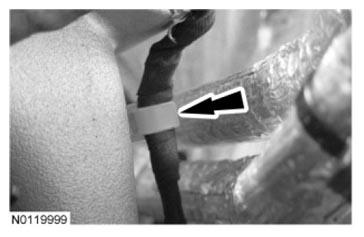

Fig 5: Locating Wire Retainer Of Rear Valve Cover Stud Bolt
Courtesy of FORD MOTOR CO.
Connect the 2 wire retainers to the valve cover stud bolts.

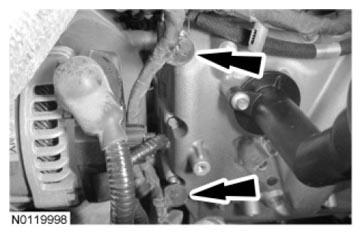

Fig 6: Locating Wire Retainers Of Valve Cover Stud Bolts
Courtesy of FORD MOTOR CO.

NOTE: Only 1 retainer shown in illustration.

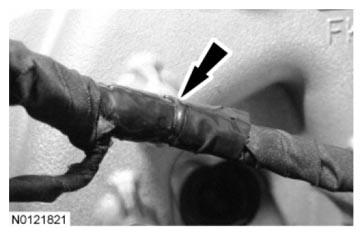

Fig 7: Locating Wire Retainers Of Fuel Injection Harness

Courtesy of FORD MOTOR CO.

Connect the 2 wire retainers for the fuel injection harness.
Install the LH glow plugs. For additional information, refer to GLOW PLUG SYSTEM - 6.7L DIESEL article.
Install the LH fuel rail, LH fuel injectors and fuel rail supply tube. For additional information, refer to FUEL CHARGING AND CONTROLS - 6.7L DIESEL article.
Install the crankcase vent oil separator. For additional information, refer to EMISSION CONTROL SYSTEM article.
