LH Rocker Arm: Notes

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

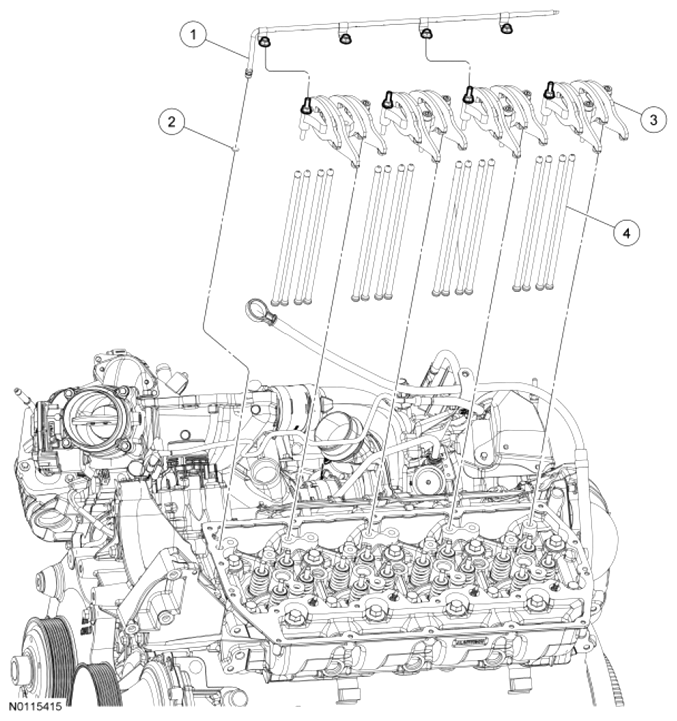

Fig 1: Identifying LH Rocker Arm Components
G07480872Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 6578 Oil spray bar
2 8527 Oil spray bar O-ring seal
3 6A582 Rocker arm assembly (4 required)
4 6565 Push rod (16 required)
