Oil Pump Screen and Pickup Tube: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Apply clean engine oil to the O-ring seals prior to installing the oil pump screen and pickup tube.
  1. Using new O-ring seals, install the oil pump screen and pickup tube and 3 bolts.
    • Tighten to 10 Nm (89 lb-in).
  2. Install the oil pan baffle and 10 bolts. Tighten in the sequence shown in illustration.
    • Tighten to 10 Nm (89 lb-in).

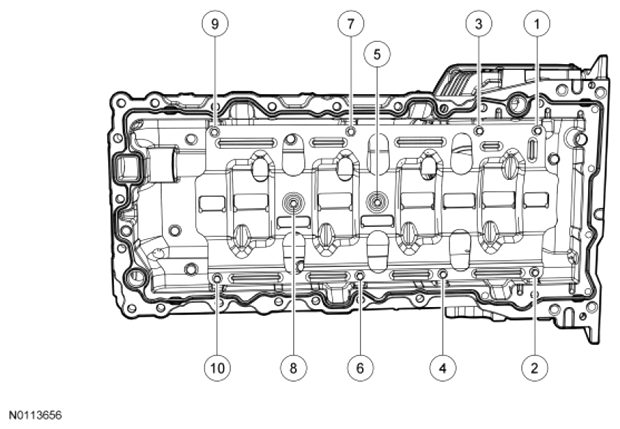

    Fig 1: Identifying Oil Pan Baffle Bolts Tightening Sequence
    G07480936Courtesy of FORD MOTOR CO.
  3. Install the upper oil pan. For additional information, refer to OIL PAN - UPPER  in this service information.
