Lower Oil Pan

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

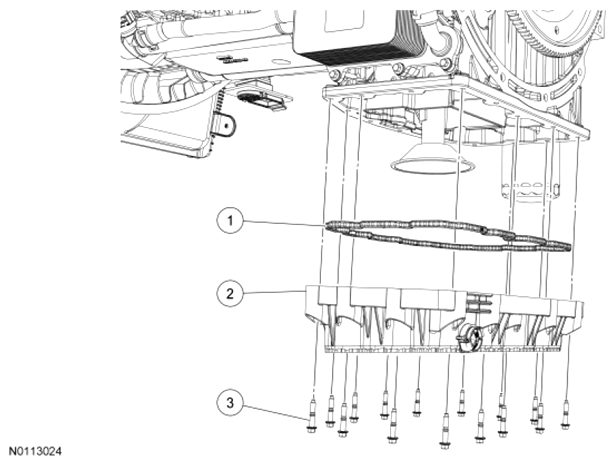

Fig 1: Identifying Lower Oil Pan Components
G07480928Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 6710 Oil pan gasket
2 6675 Lower oil pan
3 6H092 Lower oil pan bolt (15 required)
