Oil Pan - Lower: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a new gasket, install the lower oil pan and the 15 bolts. Tighten in the sequence shown in illustration.
    • Tighten to 10 Nm (89 lb-in).

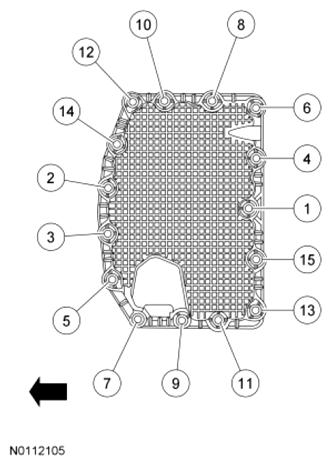

    Fig 1: Identifying Lower Oil Pan Bolts Tightening Sequence
    G07480929Courtesy of FORD MOTOR CO.
  2. Fill the engine with the correct engine oil for the climate. Refer to the ENGINE  in this service information.
